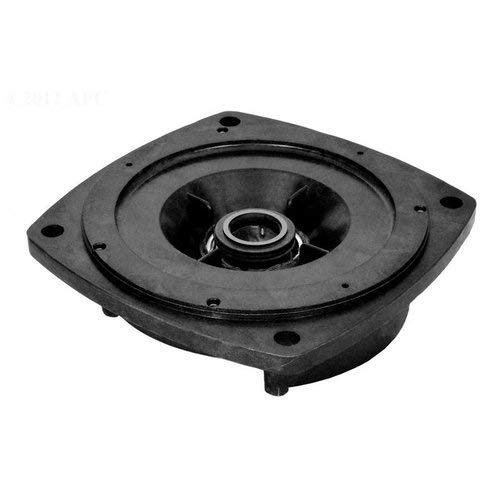

Waterco 6350624 Aquamite Supamite Adapter Seal Plate with Inserts

Product Description

The Waterco Aquamite/Supamite Adapter Seal Plate with Inserts (MPN: 6350624) is designed for use with Waterco AquaMite and SupaMite pumps. It is compatible with pump models ranging from 0.5 horsepower to 1.5 horsepower.

• Made of durable plastic material
• Includes Volute to Seal Plate Mounting Type with 4 bolts
• Seal Plate to Motor Mounting Type is 48 Frame Thru-Bolt

Product Highlights

This replacement seal plate features a volute to seal plate hole spacing of 5-1/16 inches and a seal plate to motor hole spacing of 3-5/8 inches. The impeller space diameter is 4-7/8 inches, making it a reliable part for maintaining the efficiency of your Waterco pump.

Product Information

Standard Information

• Category: Seal Plates
• Brand: Waterco

Technical Specifications

• MPN: 6350624
• Material: Plastic
• Compatible Pumps: AquaMite, SupaMite
• Horsepower: 0.5hp-1.5hp
• Mounting Type (Volute to Seal Plate): 4 Bolts
• Volute to Seal Plate Hole Spacing: 5-1/16 inches
• Mounting Type (Seal Plate to Motor): 48 Frame Thru-Bolt
• Seal Plate to Motor Hole Spacing: 3-5/8 inches
• Impeller Space Diameter: 4-7/8 inches
