Water-Tite 82052 Washing Machine Outlet Box Dual Drain 1/2 in W2700

Product Description

The Water-Tite 82052 is designed as a washing machine outlet box with a dual drain feature. This outlet box includes a 1/4 turn brass valve for easy operation. The dimensions of the box are eight and one-fourth inches in width, three and three-fourths inches in depth, and six and one-eighth inches in height.

• Includes a 1/4 turn brass valve for effective water control
• Constructed with an extended mounting flange for secure installation
• Meets ASME A112.18.1 and UPC standards

Product Highlights

This unit provides reliable connections for washing machines and includes features that facilitate easy installation and access for maintenance.

Product Information

Standard Information

• Manufacturer: Water-Tite
• UPC: 12181820520

Technical Specifications

• Item: Washing Machine Outlet Box
• Type: Dual Drain, 1-Piece
• Pipe Connection: 1/2 Inch Soldered

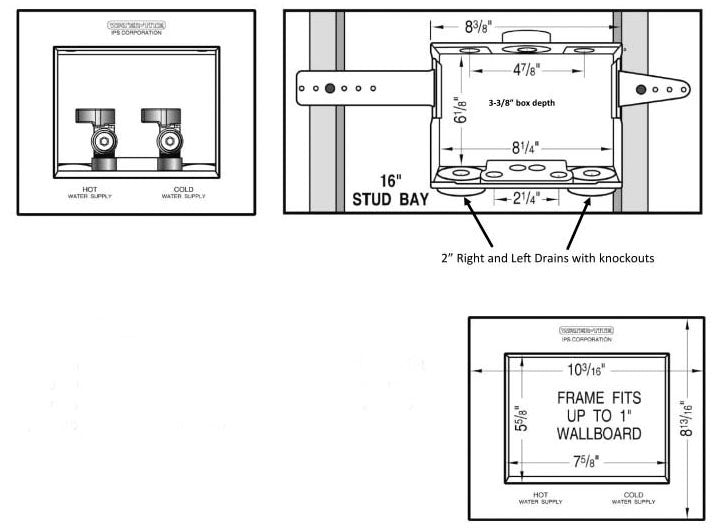

• Box Size: 8-1/4 Inch Width x 3-3/4 Inch Depth x 6-1/8 Inch Height
• Face Plate Size: 10-3/16 Inch Width x 8-13/16 Inch Height
• Box Volume: 2.14 Cubic Foot
• Valve Supplied: Yes
• Valve Details: 1/4 Turn Brass Valve
• Inclusions/Features: Extended Mounting Flange
• Applicable Standard: ASME A112.18.1, UPC
