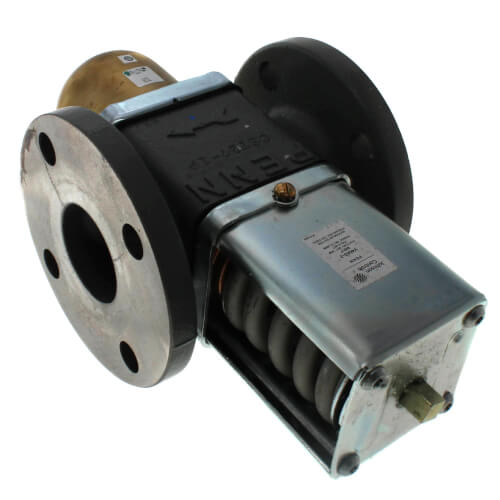

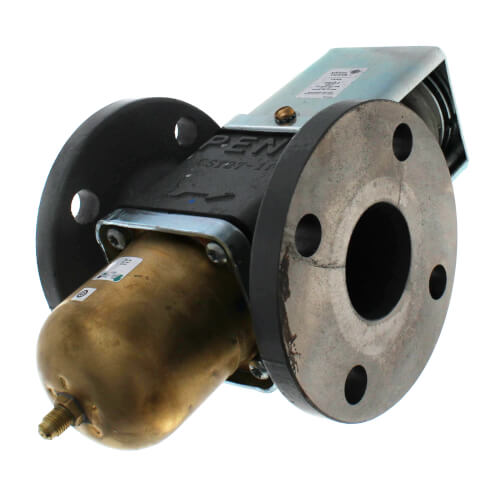

Johnson Controls V46AS-2C Pressure Actuated Valve 2 in 70-260 psi

Product Description

The Johnson Controls V46AS-2C is a pressure actuated valve designed to control water pressure in various HVAC applications. This valve operates efficiently within a pressure range of seventy to two hundred sixty psi. It features a two-inch NPT size and comes with a four-hole ASME flange for easy installation.

• No close fitting or sliding parts in water passages
• Corrosion resistant materials for increased durability
• Pressure-balanced design for consistent performance

Product Highlights

This valve's unique design minimizes potential issues such as water hammer and chatter, ensuring smoother operation. It also allows for easy access to the internal components without removing the valve from the system, facilitating maintenance and adjustments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V46AS-2C

Technical Specifications

• Size: 2 inches
• Opening Point Range: 160 to 260 psi
• Connections: 1/4 Male Flare
• Inlets: 4-Hole ASME Flange
• Outlets: 4-Hole ASME Flange
• Connection Ends: NPT
• Service: All-Range
• Country of Origin: MX
• Harmonized Tariff Code: 8481.8
• Weight: 24.8 lbs
