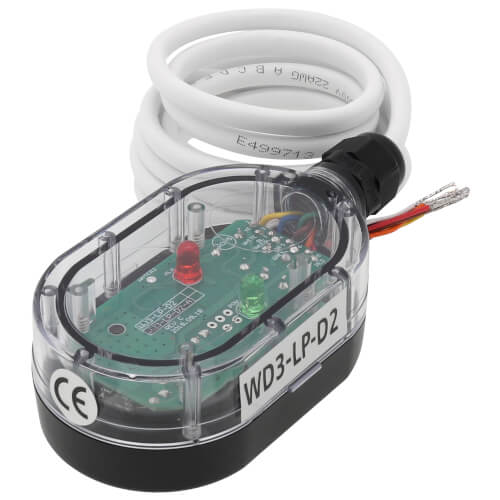

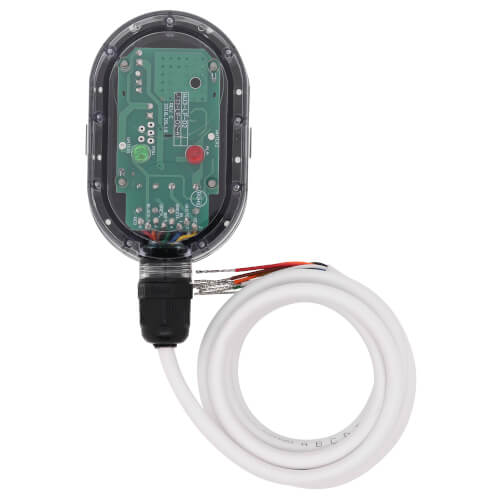

Dwyer WD3-LP-D2 Line Powered Water Leak Detector 24 Volts

Product Description

The Dwyer Line Powered Water Leak Detector, model WD3-LP-D2, offers powerful leak detection capability without an audible alarm. This essential detector is designed for use in areas such as air handler units, raised floors in data centers, and around sump pumps and drains.

• Employs a DPDT relay switch type for robust performance.
• Operates effectively within a temperature range from 32 to 122 degrees Fahrenheit.
• Features a red LED visual indicator for water level and a green LED for power status.

Product Highlights

Constructed from ABS polycarbonate, this detector is both durable and reliable, meeting industrial standards with a NEMA 6P rating and IP68 submersibility. It is equipped for either 24 VAC or 11-27 VDC operations, making it adaptable to various power supplies. The low sensing height, adjustable down to 1/32 inch, facilitates precise water level detection.

Product Information

Standard Information

• Brand: Dwyer
• MPN: WD3-LP-D2

Technical Specifications

• Enclosure Rating: NEMA 6P, IP68
• Dimensions: 6.5 x 4.45 x 1.55 inches
• Weight: 0.43 lbs
• Material: ABS polycarbonate
• Temperature Range: 32 to 122°F
• Control Type: DPDT relay, no audible alarm
• Indicator Lights: Red for water level, Green for power
