Watco FLEX924-FA-PVC-CP Flex Bath Waste Foot Actuated 1-1/2 inches-11-1/2 NPSM

Product Description

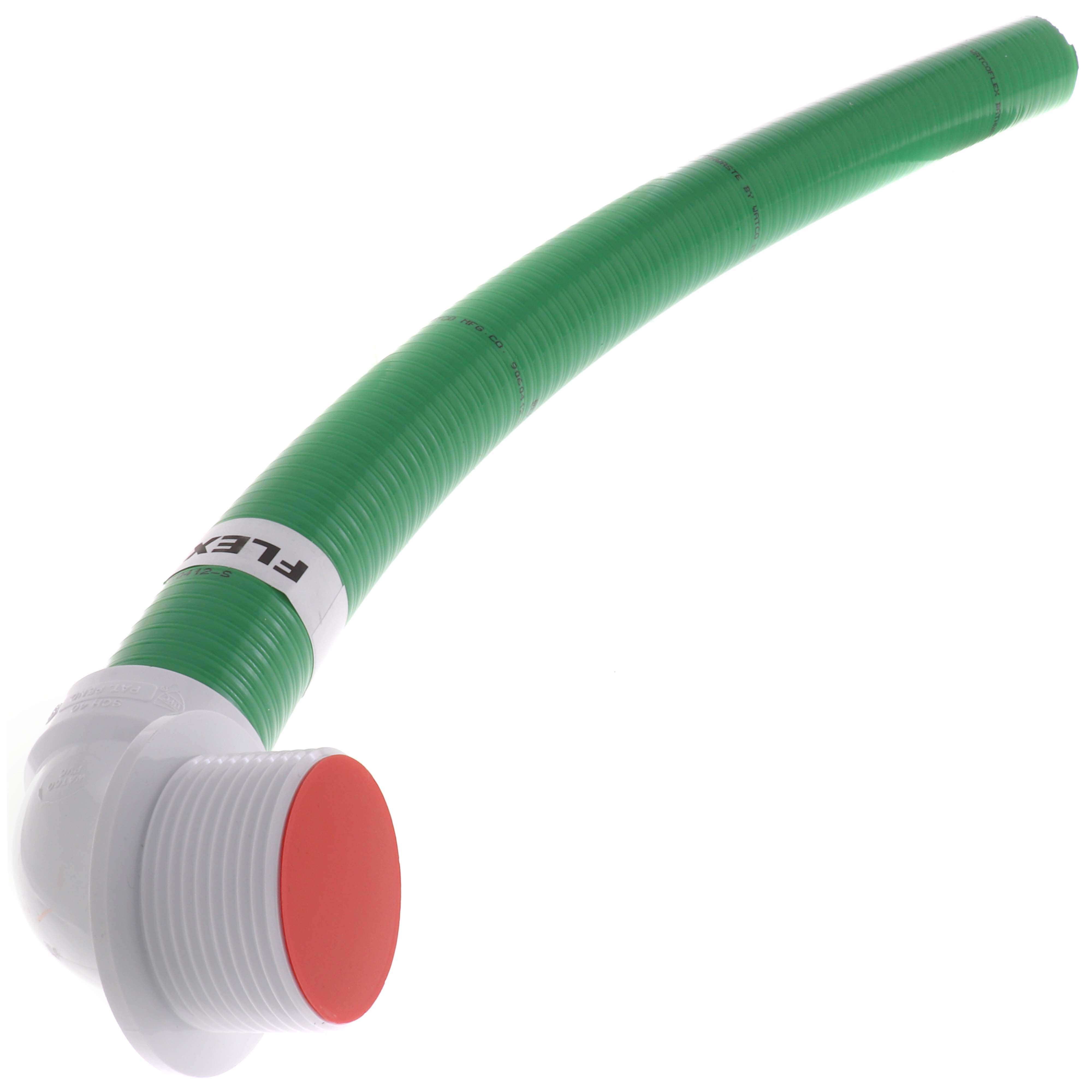

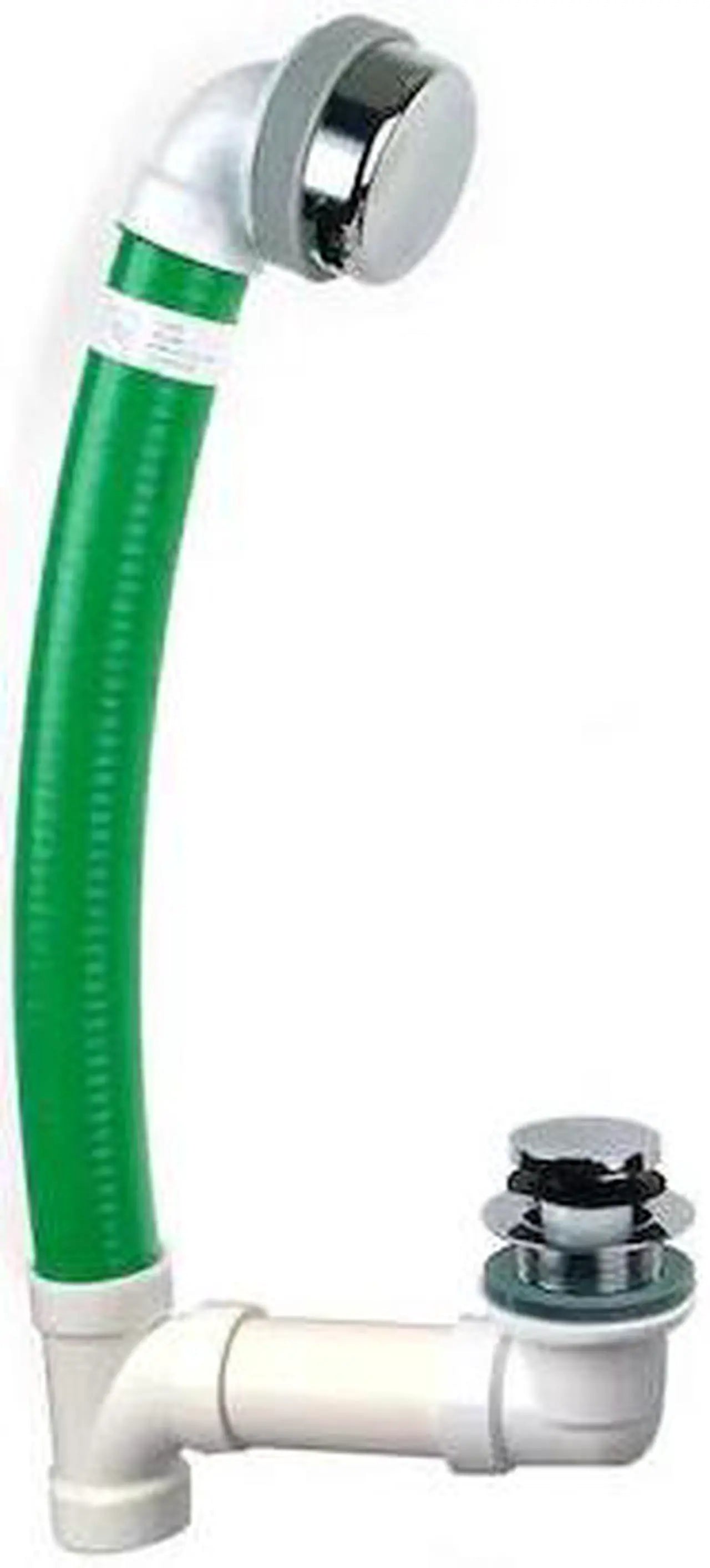

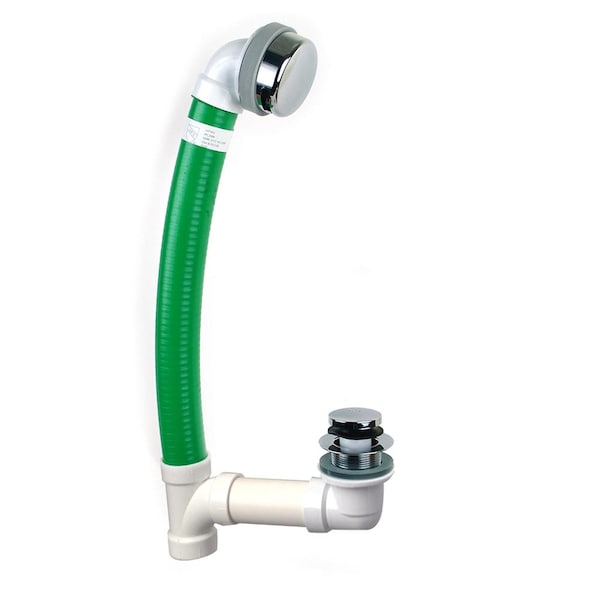

The WATCO FLEX924-FA-PVC-CP flex bath waste is a complete flexible bath waste with 24 inches of flexible tubing in place of the rigid PVC overflow pipe. The flexible tubing allows it to easily bend over from a misaligned drain pipe to the overflow hole of the bathtub.

• Eliminates the need to use 45° elbows for offsets; just bend the flexible tubing to correct the misalignment
• Eliminates all screws and a separate overflow test plug
• Eliminates leaks due to loose overflow attachment

Product Highlights

This bath waste is manufactured in compliance with ASME A112.18.2-2005/CSA B125.2-2005; and IAPMO PS 69-2006 and is ADA Compliant. It includes a built-in test membrane.

Product Information

Standard Information

• Brand: WATCO
• Manufacturer Part Number: FLEX924-FA-PVC-CP
• Country of Origin: United States

Technical Specifications

• FinishColor: Polished Chrome
• Finish_Name: Polished Chrome
• ADA_Compliant: Yes
• Commercial_or_Residential: Primarily Residential
• Type: Standard Full Kit
• Finish: Chrome Plated
• Length: 16"
• Material: PVC
• Drain Type: Foot Actuated
• Application: Bath
• Thread Size: 1-1/2”–11-1/2" NPSM (Coarse Thread)
• Outside Diameter: 1.865 ”
• Color/Finish: Chrome
• Country of Origin: United States
• Brand: WATCO
• Major Diameter (Outside Thread Diameter): 1.865 ”
• threads per inch: 11.5
