Watco 58306-CP Lift and Turn 1.865 inches x 11 1/2 Threads x 1.25 inches 3.1 inches Wide Flange

Product Description

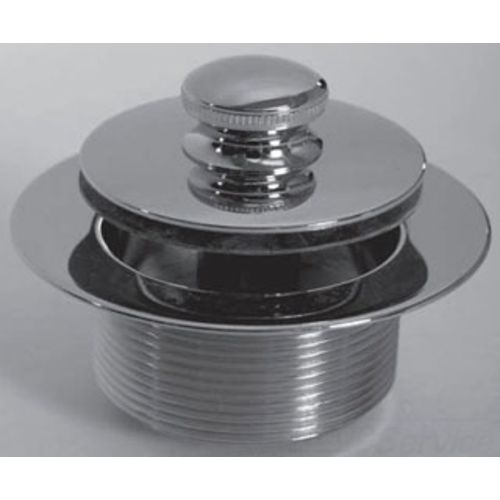

The WATCO 58306-CP Lift and Turn drain assembly features a 1.865" X 11 1/2 Threads X 1.25" configuration with a 3.1" Wide Flange. This drain assembly, made from Brass and PVC, is designed for tub installations, requiring removal of the old strainer body. It supports both fine (14- and 16-thread) and coarse (11.5-thread) options, ensuring compatibility with various tub drain types. The assembly includes a stopper and strainer body, and has a Polished Chrome finish.

• Available with Fine (14- and 16-thread) and Coarse (11.5-thread) options
• Includes choice of Push Pull®, Lift and turn, Foot actuated, or PresFlo® stopper
• Strainer body available with Fine or Coarse threads

Product Highlights

This Lift and Turn drain assembly offers versatile thread options and stopper choices for tub installations.

Product Information

Standard Information

• Brand: WATCO
• Manufacturer Part Number: 58306-CP

Technical Specifications

• MPN: 58306-CP
• Length: 1.25 Inches
• Drain Material: Brass, PVC
• Fine Thread (14): 1.625" O.D. x 14 - 1.25; Wide Flange O.D. 3.100"
• Fine Thread (16): 1.625" O.D. x 16 - 1.25"; flange O.D. 2.820"
• Fine Thread (16) Trade Designation: 1-3/8" x 16
• Fine Thread (16) Conversion: With included 38104 bushing, converts to 1.9" O.D. x 14
• Coarse Thread (11.5): 1.865" O.D. x 11.5 - 1.25"; flange O.D. 2.820"
• Coarse Thread (11.5) Conversion: With included 38105 bushing, converts to 2.11" O.D. x 16
• Coarse Thread (11.5) Wide Flange: 1.865" O.D. x 11.5 - 1.25"; Wide flange O.D. 3.100"
• O.D. Definition: Overall Diameter
• Finish: Polished Chrome
• Manufacturer: Watco
• Product Type: Bathroom Part & Accessories
• Style: Waste and Overflow
• Width: 2.88"
• Height: 2.88"
• Weight: 0.7 lbs.
• UPC: 640263018499
• Product Line: Trim Kits/Tub Close
• Connection Type: Thread Connection
