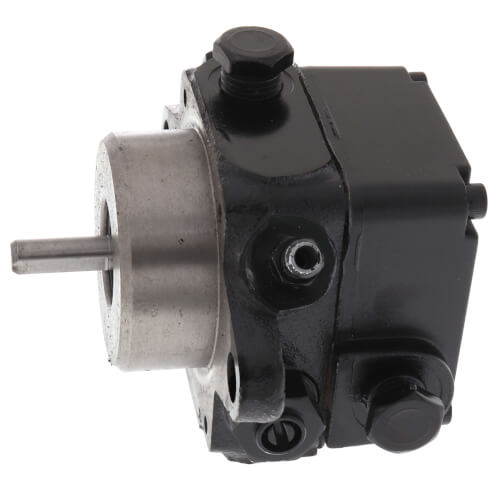

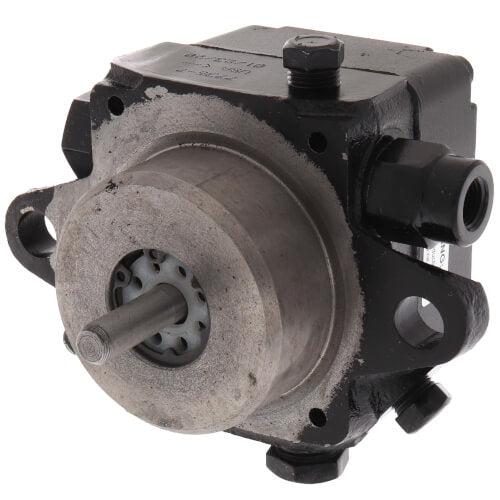

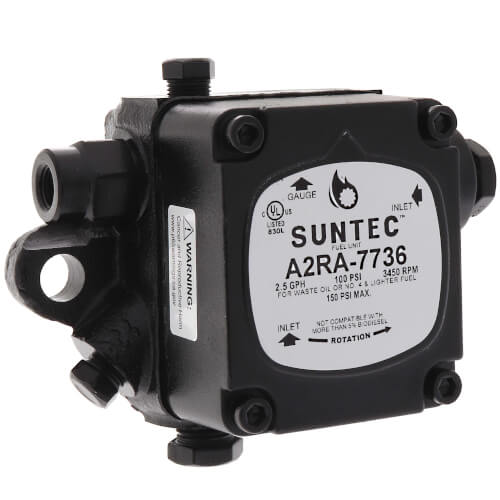

Suntec A2RA7736 Waste Oil Pump Single Stage 3450/1725 RPM

Product Description

The Suntec A2RA7736 is a waste oil pump designed for single-stage operation at 3450 or 1725 RPM. Ideal for various heating applications, it is suitable for single-pipe systems up to 6 inches of mercury vacuum and two-pipe systems up to 12 inches of mercury vacuum.

• Single-pipe and two-pipe compatibility
• Factory-set at 100 psi
• Adjustable pressure range based on RPM

Product Highlights

This model can be mounted in any position and is factory-set at 100 psi, with an adjustable range of 100-150 psi at 3450 RPM and 100-135 psi at 1725 RPM. It supports lift or gravity feed applications with a maximum inlet/return pressure of 10 psi.

Product Information

Standard Information

• Brand: Suntec
• Model: A2RA7736

Technical Specifications

• Flow Rate: 0.4 GPH to 2.5 GPH
• Single Stage Operation
• Suitable Fuels: No. 2 fuel oil, No. 1 fuel oil, kerosene
• Single-pipe installations: Up to 6 inches of mercury vacuum
• Two-pipe installations: Up to 12 inches of mercury vacuum
• Maximum Inlet/Return Pressure: 10 psi
• Factory-set Pressure: 100 psi
• Adjustable Pressure Range: 100-150 psi at 3450 RPM; 100-135 psi at 1725 RPM
• Mounting: Any Position
• Country of Origin: United States
