Warwick Hanger 2112-M Horizontal Rod Anchor 3/8 in Steel 25pk

Product Description

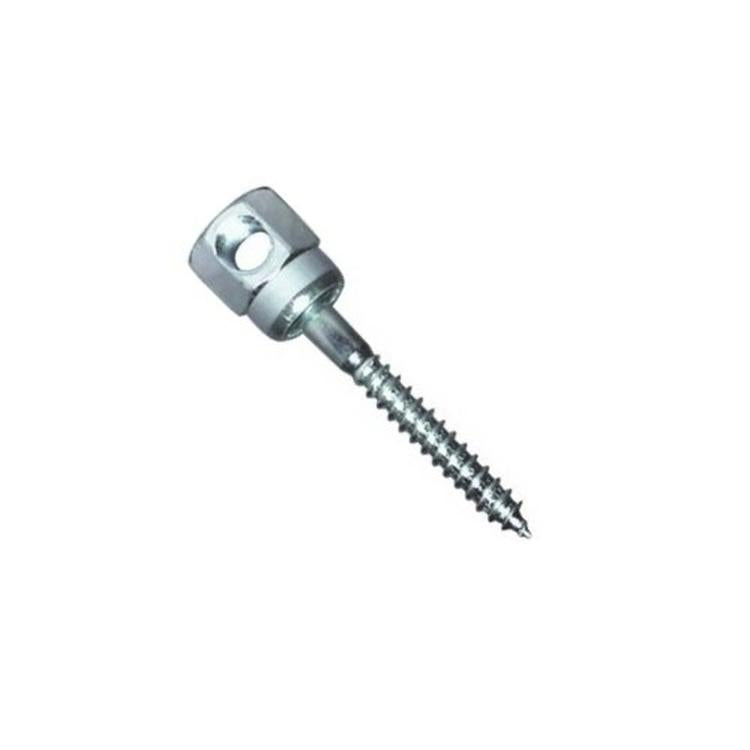

The WARWICK HANGER 2112-M is a self-tapping horizontal rod anchor designed to secure 3/8-inch threaded rod to structural steel members. The hex head drives directly into steel without a pre-drilled pilot hole, creating a fast, reliable attachment point for suspended pipe, conduit, duct, and mechanical systems. Each anchor accepts 3/8-inch rod and measures 1-1/2 inches in anchor size. Sold in a 25-unit package, this fastener is a standard option for commercial and industrial mechanical installations where rod hangers must attach to steel beams, purlins, or deck framing.

This anchor is suited for HVAC, plumbing, and electrical contractors working on suspended systems in steel-framed structures. Typical applications include hanging threaded rod from structural steel in commercial buildings, warehouses, and industrial facilities. The self-tapping design eliminates the need for a separate tap or pre-drilled hole in the steel substrate, reducing installation time on overhead framing work.

Key Features

• Self-tapping design drives directly into steel without pre-drilling
• Accepts 3/8-inch threaded rod for standard hanger assemblies
• 1-1/2-inch anchor size for positive engagement in steel substrate
• Hex head allows installation with standard impact driver or wrench
• Packaged in quantities of 25 for jobsite efficiency

Compatibility

Designed for use on steel substrates as an OEM-style horizontal rod anchor compatible with 3/8-inch threaded rod hanger systems.

Installation Notes

Installation is typically performed by licensed mechanical, plumbing, or electrical contractors during rough-in framing stages. Drive the hex head anchor into steel using a hex-drive impact driver or socket wrench at the appropriate torque for the steel gauge being penetrated. Confirm the steel substrate is within the rated thickness range before installation. Follow applicable codes including NFPA 13, IMC, IPC, or NEC depending on the suspended system type.

Technical Specifications

• Anchor Type: Mechanical, Self-Tapping
• Head Type: Hex
• Anchor Size: 1-1/2 inches
• Rod Size: 3/8 inches
• Mounting Type: Vertical
• Used On Material: Steel
• Weight: 0.65 pounds
• Packaging Quantity: 25

Standard Information

• Brand: WARWICK HANGER
• Manufacturer Part Number: 2112-M
