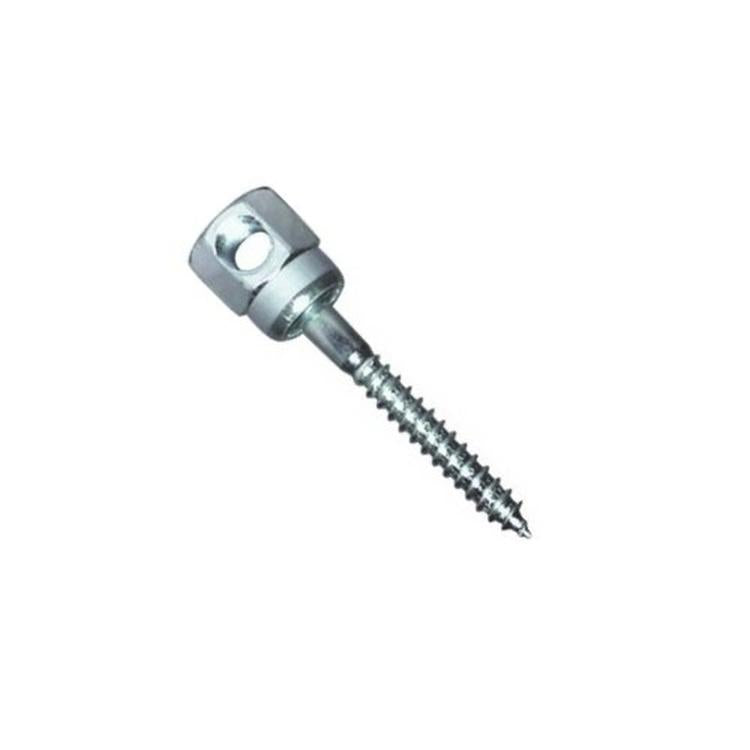

Warwick Hanger 2112-a Horizontal Rod Anchor 3/8 in Wood

Product Description

The WARWICK HANGER 2112-a is a self-tapping horizontal rod anchor designed to secure 3/8-inch threaded rod to wood structural members. The anchor features a hex head and side-mounting orientation, allowing installation with standard hand tools or a power driver. At 2 inches in length, it drives directly into wood framing without the need for a pre-drilled pilot hole in most applications. Each package contains 25 anchors, making it a practical stocking unit for mechanical, plumbing, and electrical contractors who routinely hang pipe, conduit, or ductwork from wood joists or beams.

This anchor is suited for residential and light commercial overhead installations where threaded rod hangers attach to wood framing. Common applications include suspending pipe runs, conduit, strut channel, and HVAC duct support rods from wood floor joists, rafters, or blocking. The horizontal side-mount orientation positions the rod parallel to the ceiling surface, a configuration frequently required in tight joist bays or when running lateral support rods along a framing member.

Key Features

• Self-tapping design drives directly into wood without a separate anchor or insert
• Accepts 3/8-inch threaded rod for standard pipe and conduit hanger assemblies
• Hex head allows installation with a standard hex driver or wrench
• Side-mount orientation supports horizontal rod runs along wood framing
• 2-inch screw length provides solid bite into dimensional lumber and engineered wood members
• Sold in a 25-count package for contractor-quantity stocking

Compatibility

Designed for use with 3/8-inch threaded rod in wood-framing applications as an OEM-style horizontal rod anchor for mechanical, plumbing, and electrical support systems.

Installation Notes

Installation is performed by licensed plumbers, electricians, or mechanical contractors working on pipe and conduit support systems. Drive the anchor into the wood framing member using a hex-head driver before attaching the threaded rod and hanger assembly. Verify that the wood substrate has sufficient thickness and structural integrity to support the intended load. Follow applicable IPC, IMC, or NEC support-spacing requirements for the pipe or conduit type being hung.

Technical Specifications

• Type: Self-Tapping Wood Screw Anchor
• Head Type: Hex
• Mounting Type: Side (Horizontal)
• Rod Size: 3/8 inches
• Anchor Length: 2 inches
• Application: Wood
• Packaging Quantity: 25
• Weight: 0.07 pounds

Standard Information

• Brand: WARWICK HANGER
• Manufacturer Part Number: 2112-a
