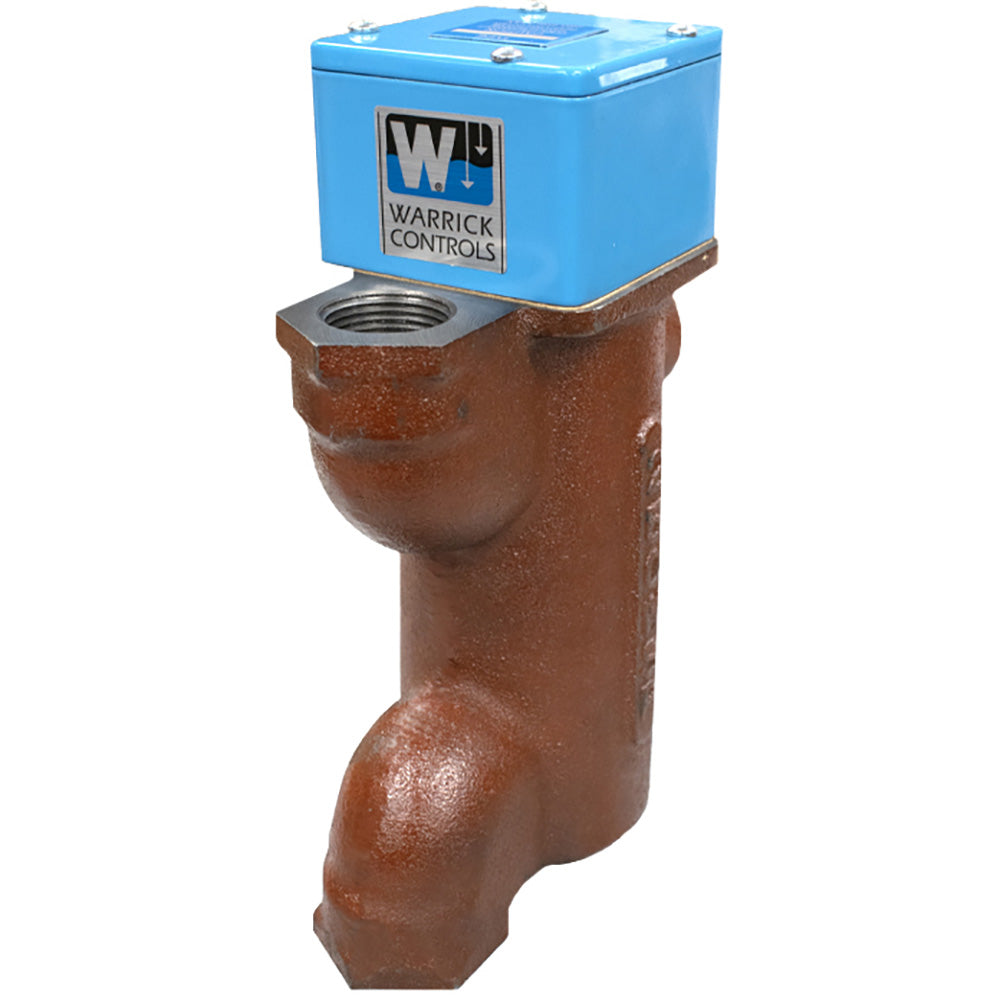

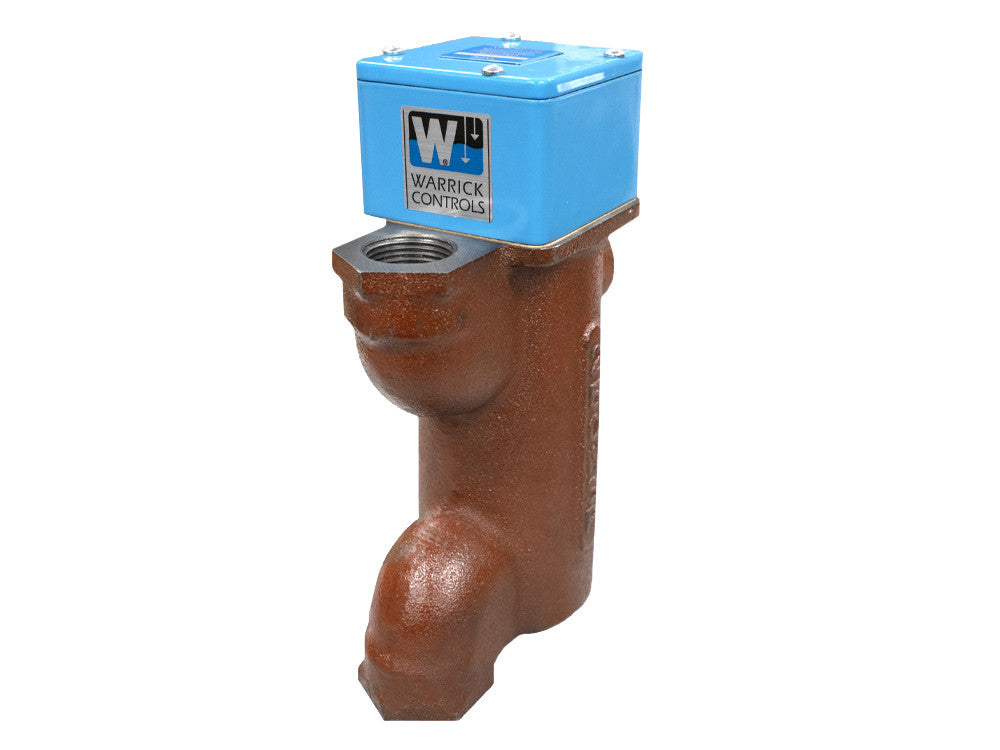

Warrick-Gems Sensors and Controls 3C3A14 Side-Chamber Electrode Fitting (Series 3C)

Product Description

Warrick-Gems Sensors and Controls 3C3A14 is a Series 3C side-chamber electrode fitting that provides a pressure-tight external side-mount chamber for level equalization in boilers and pressure vessels. It accommodates one to four probes with probe lengths from 1-1/2 inches (38 mm) to 6 inches (152 mm), and is available in cast iron or brass. The fitting is specified with a 5.5-inch length and rated to 500 °F and 250 psi.

• External side mounting pressure-tight chamber for level equalization in boilers and pressure vessels
• Holds 1 to 4 probes; probe lengths from 1-1/2 in (38 mm) to 6 in (152 mm); compact 5.5-inch length
• Cast iron or brass housing; maximum operating temperature 500 °F; operating pressure 250 psi

Product Highlights

Series 3C pressure-tight side chamber; accommodates up to four probes; cast iron or brass construction; rated to 500 °F and 250 psi.

Product Information

Standard Information

• Brand: WARRICK-GEMS SENSORS & CONTROLS
• Manufacturer Part Number: 3C3A14

Technical Specifications

• Brand: Warrick-Gems Sensors and Controls
• Manufacturer Part Number: 3C3A14
• Part Number: PN 3C3A14
• Series: Series 3C
• Mounting Type: External side mounting
• Housing Material: Cast iron or brass
• Probe Capacity: Holds 1 to 4 probes
• Probe Length Range: 1-1/2 inches (38 mm) to 6 inches (152 mm)
• Length: 5.5 inches
• Application: Level equalization for boilers and pressure vessels
• Maximum Operating Temperature: 500 °F
• Operating Pressure: 250 psi
