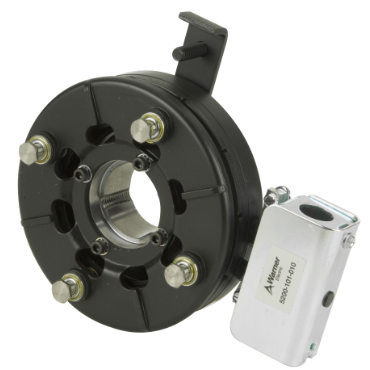

Warner Electric 5382-170-002 EB Series Electro Brake Power On 90 VDC

Product Description

The Warner Electric 5382-170-002 is an EB Series Electro Brake designed to provide reliable stopping power with a power-on mechanism. This brake operates on ninety volts direct current and requires a shaft size between half an inch and one point375 inches. The EB-650 model ensures straightforward installation, eliminating the need for assembly.

• Preengineered and prepackaged for easy installation.
• No maintenance requirements, promoting long life.
• Automatic wear adjustment for consistent performance.

Product Highlights

This electro brake is built for easy integration with standard motors, ensuring efficiency in mechanical power transmission applications.

Product Information

Standard Information

• Brand: Warner Electric
• MPN: 5382-170-002

Technical Specifications

• Torque Rating: 95 ft lb
• Bore Size (Min): 0.5 in
• Bore Size (Max): 1.375 in
• Voltage Rating: 90 VDC
• Bushing Series: 1310
• Bushing Type: Taperlock
• Unit Size: EB650
• Housing Material: Steel
• Style: Shaft Mount
• Housing Length: 3.109 in
• Outside Diameter: 6.578 in
• Weight: 13.0 lbs
• EAN or UPC: 786582067630
