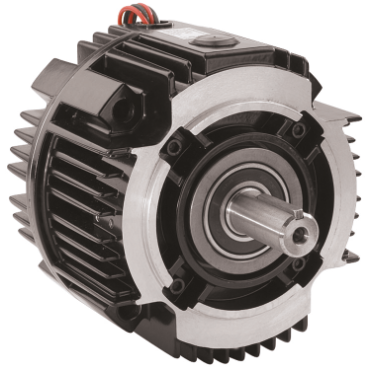

Warner Electric 5371-273-003 UniModule Clutch-Brake 90 VDC 95 ft lb Torque

Product Description

The Warner Electric UniModule Clutch-Brake, MPN 5371-273-003, is designed for various applications requiring reliable operation. It operates on ninety volts direct current and delivers a torque rating of ninety-five foot-pounds. This unit's design allows for easy installation and maintenance-free operation.

• For motor or reducer mounting
• Preassembled for immediate use
• Designed for high cycle rates

Product Highlights

The UniModule Clutch-Brake features heavy-duty bearings and fan cooling for enhanced performance and longevity. Its modular design integrates easily into existing systems.

Product Information

Standard Information

• Brand: Warner Electric
• MPN: 5371-273-003

Technical Specifications

• Bore Size: 1 1/8 inches
• Torque Rating: 95.0 ft lb
• Voltage Rating: 90 VDC
• Outside Diameter: 9 1/4 inches
• Housing Length: 5.922 inches
• Shaft Extension Length: 2 1/2 inches
• Weight: 43.0 pounds
• Frame Type: 182TC/184TC, 213C/215C
• Model: UM210-10-20
