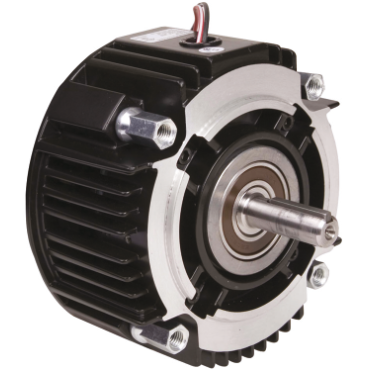

Warner Electric 5371-169-029 EM-FBB Electrically Released Brake 90VDC (Each)

Product Description

The Warner Electric 5371-169-029 EM-FBB Electrically Released Brake is designed for effective operation in various motor systems. This brake can be used with a motor clutch, allowing for reliable stopping power in applications requiring precise control.

• Compatible with NEMA C-face motors
• Maintenance-free operation
• Sealed coils for durability

Product Highlights

Engineered for ease of installation and robust performance in demanding environments.

Product Information

Standard Information

• Brand: Warner Electric
• Part Number: 5371-169-029

Technical Specifications

• Style: Modular Unit
• Frame Compatibility: 182TC, 184TC, 213C, 215C
• Bore Size: 1.125 inches
• Housing Length: 4.922 inches
• Shaft Extension Length: 2.5 inches
• Output Shaft Diameter: 1.125 inches
• Power On/Off Type: Power Off
• Outside Diameter: 9.344 inches
• Torque Rating: 56 ft-lb
• Housing Material: Cast Aluminum
• Voltage Rating: 90 VDC
• Weight: 27.4 lb
• Lead Wire Position: External Right
• Frequency: 60 Hz
• Use With: Compatible with modules
• Sealed Coils: Yes
• Friction Material: Long-life, high torque
