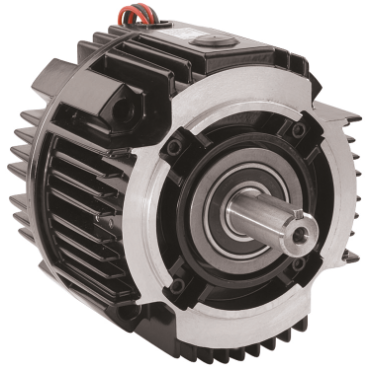

Warner Electric 5370-273-209 UniModule Clutch-Brake 90 DC Voltage

Product Description

The Warner Electric UniModule Clutch-Brake, MPN 5370-273-209, is designed for effective control in clutch and brake applications. This modular unit can be motor or reducer mounted and is ideal for various mechanical setups.

• Heavy-duty bearings ensure operational efficiency.
• Fan-cooled design promotes longevity and reliable performance.
• Completely sealed coils protect internal components.

Product Highlights

With ease of installation and maintenance-free operation, the UniModule Clutch-Brake offers convenience and durability for users.

Product Information

Standard Information

• Brand: Warner Electric
• MPN: 5370-273-209

Technical Specifications

• Voltage Rating: 90 V
• Output Shaft: 5/8 inches
• Use With: Modules
• Frame: 48Y, 56C
• Housing Length: 4.844 inches
• Torque Rating: 30.0 ft-lb
• Outside Diameter: 6 3/4 inches
• Type: Modular Unit
• Shaft Extension Length: 2.061 inches
• Bore Size: 5/8 inches
• Model: UM-100-1020
• Weight: 18.7 lb
• EAN or UPC: 786582959454
