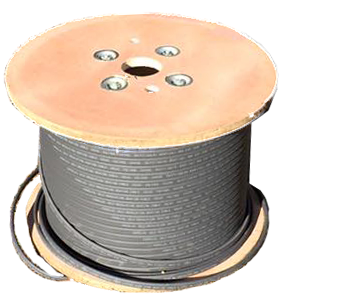

Warmup NAMSR-5W-120-1000 Self-Regulated De-Icing Cable 5W/Ft. 1000 Ft. Reel

Product Description

The Warmup NAMSR-5W-120-1000 120V 5W/Ft. Self-Regulated De-Icing Cable is a commercial-grade heating cable designed for residential and commercial roof and gutter de-icing and pipe freeze protection applications. This self-regulating cable features a polymer core that varies output with ambient temperature, increasing heat when temperatures drop and decreasing it when temperatures rise. This mechanism saves energy and prevents hot spots, making it suitable for various de-icing needs.

• Cut-to-length cable design for flexible installation.
• Suitable for residential and commercial roof and gutter de-icing.
• Self-regulating polymer core adjusts heat output based on ambient temperature.

Product Highlights

This self-regulating de-icing cable provides energy-efficient freeze protection for roofs, gutters, and pipes, preventing hot spots and allowing for overlap.

Product Information

Standard Information

• Brand: WARMUP
• Manufacturer Part Number: NAMSR-5W-120-1000

Technical Specifications

• SKU: 1504907
• Manufacturer: Warmup
• Voltage: 120V
• Wattage per Foot: 5W/Ft.
• Length: 1000 Ft.
• Type: Self-Regulated De-Icing Cable
• UPC/GTIN Code: 815846013653
• Color: Black
• Cable Construction: Self Regulating
• Heat Trace Termination Type: Terminate In The Field Heat Trace
• Bus Wire Gauge: 16 AWG
• Heat Trace Type: Roof and Gutter Heat Trace
• Secondary Heat Trace Type: Pipe Heat Trace
• Product Condition: New
• Max Continuous Exposure Temperature: 150°F
• Roof and Gutter Deicing Applications: Suitable For All Roof Types
• Matrix Description: A semi-conductive polymer core whose electrical resistance varies with temperature. When process temperature drops, the core’s heat output increases; conversely, as process temperature rises, heat output decreases.
• Jacket Material: The flame retardant insulation jacket is a thermoplastic rubber material with excellent water resistance. It resists certain mildly corrosive chemicals.
• Braid Material: The braid covering the jacket provides an effective ground path and mechanical protection.
• Overjacket Material: The TPR overcoat protects the braid, and provides resistance to water and certain inorganic chemical solutions, and is UV resistant.
