Ward Mfg 66246733640 Street Elbow 150 lb 1 in

Product Description

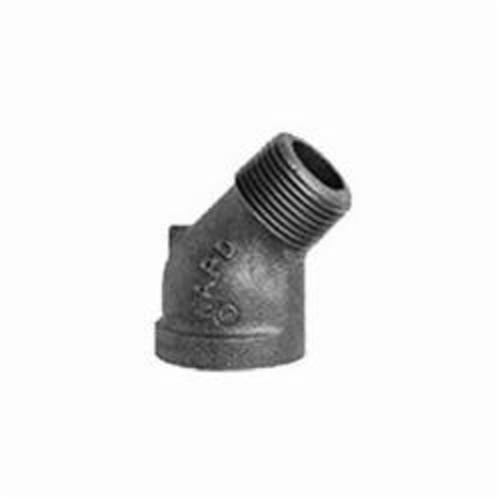

The Ward Mfg MPN 66246733640 is a street elbow fitting designed for efficient pipe connections. This fitting features a 45-degree angle with one male NPT and one female NPT end. It is built from durable malleable iron for strength and longevity. This fitting is suitable for various applications that require pipe fittings and connectors.

• 45 degree elbow for directional change in piping systems.
• Constructed from malleable iron for reliability.
• Rated for 300 psi pressure for demanding applications.

Product Highlights

The Ward Mfg street elbow offers precise and robust connection capabilities. It provides reliable performance from -20 to 150 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Ward Mfg
• Part Number: 3019113

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Fitting Type: 45-degree elbow
• Material: Malleable Iron
• Nominal Size: 1 in
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Standards/Approvals: ASME B16.14/B16.4/B1.20.1|ANSI B1.20.1|FM Approved|NSF 61-G|UL/ULC Listed|WW P521
