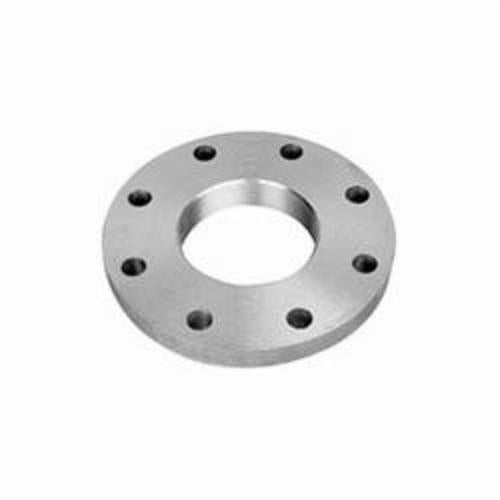

Ward Mfg 0309003200 Companion Flange 3 in Nominal 3X7D.NCF

Product Description

The Ward Mfg Companion Flange, MPN 0309003200, is designed for thread connection in high-pressure systems. This cast iron flange measures three inches nominal and is suitable for 125 lb applications. It supports a pressure rating of 175 psi and is compliant with several industry standards.

• Material: Cast Iron
• Thread connection type
• Temperature range: -20 to 150 degrees Fahrenheit

Product Highlights

This flange is ideal for plumbing and HVAC systems. Its robust construction and high-pressure rating make it reliable for various applications.

Product Information

Standard Information

• Manufacturer: Ward Mfg
• Part Number: 3032808

Technical Specifications

• Dimensions: 1.19 in L
• Hub Diameter: 4-1/4 in
• Nominal Size: 3 in
• Bolt Circle Diameter: 6 in
• Number of Bolt Holes: 4
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 deg F
• Connection Type: Thread
• Domestic/Import: Domestic
• Finish: Galvanized
• Standards/Approvals: ANSI B16.1/B1.20.1 | ASTM A126/A153 | FM Approved | NSF 61-G | UL/ULC Listed | WW F521
