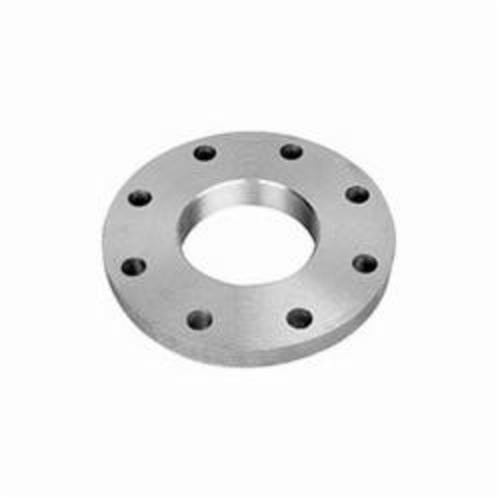

Ward Mfg 0309002806 Companion Flange, 2 in, Cast Iron, Thread, 125 lb

Product Description

The Ward Mfg 0309002806 Companion Flange is designed for plumbing and piping applications. This cast iron flange has a nominal size of two inches and features a threaded connection. It is suitable for use with 125 lb rated systems.

• Material: Cast Iron
• Pressure Rating: 175 psi
• Temperature Range: -20 to 150 degrees Fahrenheit

Product Highlights

This companion flange is essential for creating strong and reliable connections in piping systems. Its durable cast iron construction ensures lasting performance in a variety of environments.

Product Information

Standard Information

• Manufacturer: Ward Mfg
• Part Number: 3032796

Technical Specifications

• Nominal Size: 2 in
• Thickness: 0.62 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Connection Type: Thread
• Dimensions: 1 in L
• Hub Diameter: 3.06 in
• Finish: Galvanized
• Domestic/Import: Domestic
• Schedule Rating: SCH 40/STD
• Standards/Approvals: ANSI B16.1/B1.20.1 | ASTM A126/A153 | FM Approved | NSF 61-G | UL/ULC Listed | WW F521
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Pressure Rating: 175 psi
