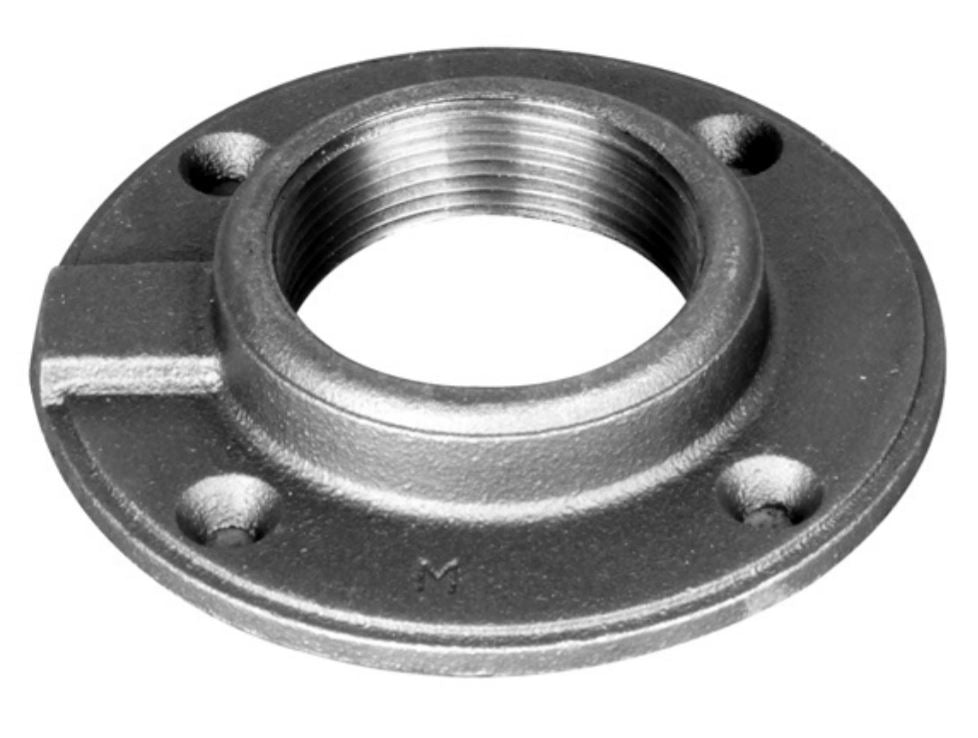

Ward Manufacturing 1D.BMFF Floor Flange, 1-1/2 in, FNPT, Malleable Iron, 150 lb, 4-1/2 in OD

Product Description

The Ward Manufacturing 1D.BMFF Floor Flange is designed for reliable plumbing connections. This floor flange features a nominal size of one and a half inches with FNPT connection. Made from malleable iron, it offers durability in various applications. The flange has a pressure class of 150 lb and can withstand pressure ratings of up to 175 psi.

• Durable malleable iron construction
• Chamfered openings for easy assembly
• Precision machining for accurate threading

Product Highlights

The Ward Manufacturing floor flange is suitable for multiple installations, including drainage and sprinkler systems. It ensures a secure fit for reliable performance.

Product Information

Standard Information

• Brand: Ward Manufacturing
• Part Number: F2365

Technical Specifications

• Bolt Circle Diameter: 3.6 in
• Bolt Hole Size: 0.3 in
• Connection Type: FNPT
• Country of Origin: US
• Dimensions: 0.99 in L
• Domestic/Import: Domestic
• Finish: Black
• Material: Malleable Iron
• Mfg Standards/Approvals: ASME B16.1/B1.20.1, ASTM A126/A153, WW F406
• Nominal Size: 1-1/2 in
• Number of Bolt Holes: 4
• Outside Diameter: 4-1/2 in
• Package Weight: 1.404 lb
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 deg F
