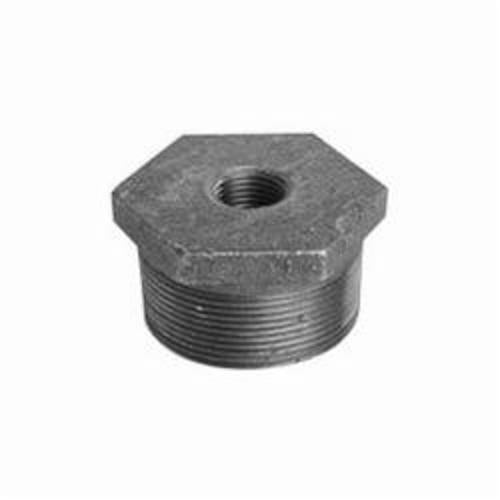

Ward 66246701890 5X4.BB Hex Head Pipe Bushing 5 x 4 in 125 lb

Product Description

The Ward Mfg 5X4.BB Hex Head Pipe Bushing is designed for use in various piping applications. This bushing features a five by four-inch nominal size with MNPT x FNPT end style. It is made from cast iron and rated for pressure applications up to one hundred seventy-five psi.

• Durable cast iron construction
• Designed for MNPT and FNPT connections
• Pressure rating of up to 175 psi

Product Highlights

The bushing is suitable for a wide range of plumbing installations.

Product Information

Standard Information

• Brand: Ward Mfg
• Part Number: 5X4.BB

Technical Specifications

• Material: Cast Iron
• Nominal Size: 5 x 4 in
• End Style: MNPT x FNPT
• Pressure Rating: 175 psi
• Temperature Rating: -20 to 150 deg F
• Schedule Rating: SCH 40/STD
• Standards/Approvals: ANSI/ASME B16.14/B16.4/B1.20.1|ASTM A126/A153|FM Approved|NSF 61-G|UL/ULC Listed|WW P471
• Type: Hex Head
