Ward 2DX1D.BER Class 125 SCH STD Black Cast Iron Eccentric Reducer 2-1/2 x 1-1/2 in

Product Description

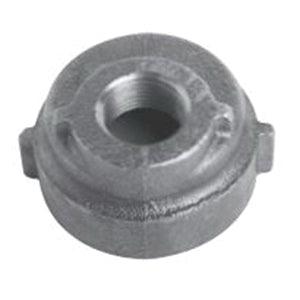

The Ward 2DX1D.BER is a Class 125 SCH STD black cast iron eccentric reducer. This fitting has a connection size of two and a half inches by one and a half inches and utilizes FNPT threading.

• Constructed from ASTM A126 Class A cast iron
• Compatible with ANSI/ASME B16.4 and B1.20.1 standards
• Pressure rated for up to 175 psi and temperature rated from negative twenty to one hundred fifty degrees Fahrenheit

Product Highlights

The Ward eccentric reducer is designed for reliable connections. It features high-quality manufacturing for a robust and water-tight fit.

Product Information

Standard Information

• Brand: Ward Manufacturing
• Part Number: CIER212.112

Technical Specifications

• Connection Size: Two and a half inches by one and a half inches
• Connection Type: FNPT
• Material: Cast Iron
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Temperature Rating: Negative twenty to one hundred fifty degrees Fahrenheit
• Finish: Black
• Standards/Certifications: ANSI/ASME B16.4, B1.20.1, UL and ULC listed, FM approved, NSF 61 and NSF 61 Annex G Certified
