Product Description

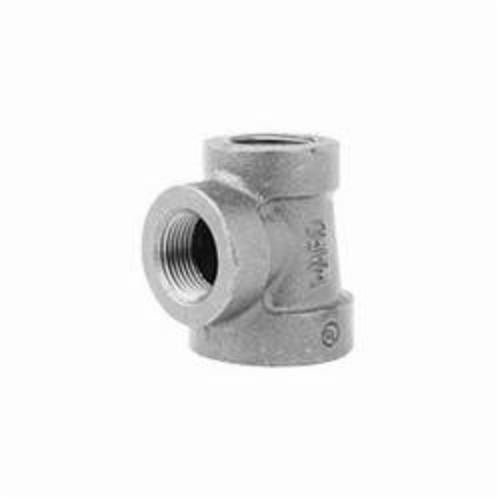

Ward 1X1B.BCT is a reducing tee designed for various plumbing applications. This fitting is constructed from high-quality cast iron and adheres to the Class 125 standards. It features a size of one inch by one inch with a one and a quarter inch branch. This fitting is ideal for domestic installations and is widely used by plumbers for reliable connections.
- Class 125, ANSI/ASME standards compliant
- Constructed from durable cast iron
- Features FNPT connection type for easy use
Product Highlights
The Ward reducing tee ensures a strong and leak-proof seal, making it suitable for a wide range of plumbing systems.
Product Information
Standard Information
-
Brand: Ward
-
Material: Cast Iron
Technical Specifications
-
Connection Size: 1 x 1 x 1-1/4 in
-
Connection Type: FNPT
-
Pressure Class: Class 125
-
Pressure Rating: 175 psi
-
Temperature Rating: -20 to 150 deg F
-
Length: 3.34 in
-
Material Specifications: ASTM A126 Class A
-
Standards/Certifications: ANSI/ASME B16.4, ANSI/ASME B1.20.1, UL and ULC listed, FM approved, NSF 61 and NSF 61 Annex G certified
