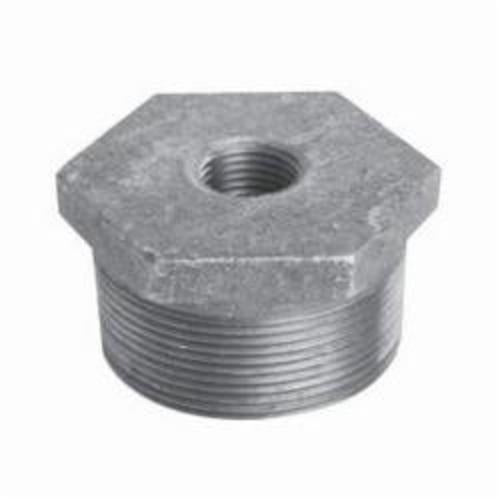

Ward 1BXE.BB Bushing Pipe BSHG 1-1/4 x 3/4 in 125 lb

Product Description

The Ward Mfg 1BXE.BB is a hex head pipe bushing made of cast iron. This fitting features a nominal size of one and one-quarter inches by three-quarters of an inch. It has a MNPT to FNPT end style and can handle up to 125 pounds of pressure. This durable component is ideal for various plumbing applications.

• Constructed from strong cast iron material
• Pressure class rating of 125 lbs and temperature rating of -20 to 150 degrees F
• Chamfered openings for easy engagement and assembly

Product Highlights

It offers reliable performance for connecting pipes within residential and commercial plumbing systems.

Product Information

Standard Information

• Manufacturer: Ward Manufacturing
• UPC: 662467010802

Technical Specifications

• Type: Hex Head
• Thickness: 0.28 inches
• Hex Size: 1.76 inches
• Nominal Size: 1-1/4 x 3/4 inches
• Pressure Class: 125 lbs
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 degrees F
