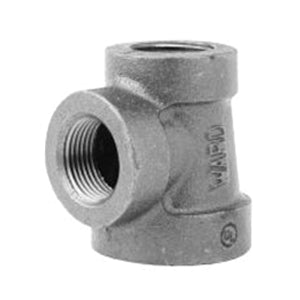

Ward 1BXDX1B.BCT Reducing Tee Class 125 1-1/4 x 1/2 x 1-1/4 in

Product Description

The Ward Reducing Tee, MPN 1BXDX1B.BCT, is designed for efficient flow distribution in piping systems. It features connections sized at one and one-fourth inches by one-half inch by one and one-fourth inches with FNPT ends. This fitting is manufactured from black cast iron and is suitable for various plumbing applications.

• Constructed from ASTM A126 Class A cast iron
• Designed for Class 125 applications with a pressure rating of 175 psi
• Temperature rating between negative twenty to one hundred fifty degrees Fahrenheit

Product Highlights

The Ward Reducing Tee is crafted to meet the highest standards of quality control. It comes with a chamfered opening for easy pipe entry and a hand-sorted inspection process to ensure dependability.

Product Information

Standard Information

• Brand: Ward
• Type: Reducing Tee

Technical Specifications

• Connection Size: 1-1/4 x 1/2 x 1-1/4 in
• Connection Type: FNPT
• Material: Cast Iron
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Schedule: STD
• Length: 3.28 in
• Temperature Rating: -20 to 150 deg F
• Standards/Certifications: ANSI/ASME B16.4, ANSI/ASME B1.20.1, UL and ULC listed, FM approved, NSF 61 and NSF 61 Annex G certified
