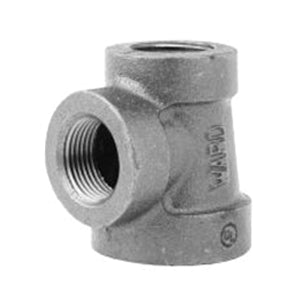

Ward 1BXD.BCT Reducing Tee Class 125 1-1/4 x 1-1/4 x 1/2 in

Product Description

The Ward 1BXD.BCT is a class 125 reducing tee made from black cast iron. This fitting is designed for fluid flow in piping systems. It connects pipes of different sizes securely with its FNPT connections. The reducing tee measures one and one-quarter inches by one and one-quarter inches down to a half-inch outlet, facilitating effective transitions in pipe dimensions.

• Class 125 pressure rating
• ANSI/ASME certified standards
• ASTM A126 Class A material

Product Highlights

This reducing tee ensures a watertight seal and is ideal for both residential and commercial plumbing applications.

Product Information

Standard Information

• Brand: Ward
• Manufacturer: Ward Manufacturing

Technical Specifications

• Connection Size: 1-1/4 x 1-1/4 x 1/2 in
• Connection Type: FNPT
• Finish: Black
• Item Name: Reducing Tee
• Length: 2.68 in
• Material Specifications: ASTM A126 Class A
• Material: Cast Iron
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Schedule: STD
• Temperature Rating: -20 to 150 deg F
• Standards/Certifications: ANSI/ASME B16.4, ANSI/ASME B1.20.1, UL and ULC listed, FM approved, NSF 61 and NSF 61 Annex G certified
