Ward 1B.BSP Square Head Solid Plug Class 125 1-1/4 in

Product Description

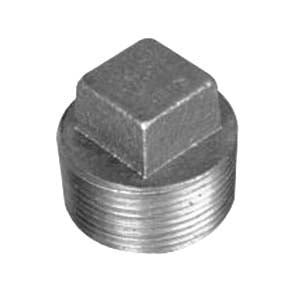

The Ward 1B.BSP is a square head solid plug made of cast iron. It features a connection size of one and one-quarter inches with MNPT threading. This product is built to meet rigorous industry standards.

• Manufactured from high-grade cast iron
• Hand sorted for defect-free quality
• Meets ASME and ANSI certifications

Product Highlights

This solid plug is suitable for various plumbing applications, providing a reliable seal for pipes and fittings.

Product Information

Standard Information

• Brand: Ward
• Part Number: BSP114

Technical Specifications

• Connection Size: 1-1/4 in
• Connection Type: MNPT
• Finish: Black
• Item Name: Square Head Solid Plug
• Length: 1.36 in
• Material Specifications: ASTM A126 Class A
• Material: Cast Iron
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Temperature Rating: -20 to 150 deg F
• Standards/Certifications: ASME B16.14, ANSI/ASME B1.20.1, UL and ULC listed, FM approved, NSF 61 and annexure G certified
