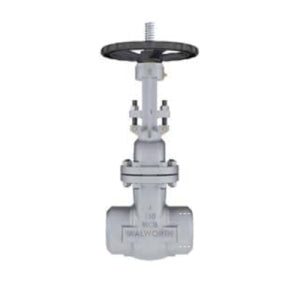

Walworth 8-5202-W-UT-WCB 8 150 CS Weld End Gate Valve

Product Description

The WALWORTH 8-5202-W-UT-WCB is an 8 IN gate valve with a buttweld connection. Featuring a cast steel body and a handwheel operator, this valve is designed for durability and ease of use. It conforms to industry standards such as ASME B16.25 and API-600, suitable for applications requiring reliable flow control.

• Nominal Size: 8 IN
• Temperature Rating: -20 To 1000 DEG F
• Pressure Rating: 285 PSIG Non-Shock

Product Highlights

This gate valve is ideal for industrial applications needing robust performance and adherence to strict industry standards.

Product Information

Standard Information

• Brand: WALWORTH
• Manufacturer Part Number: 8-5202-W-UT-WCB

Technical Specifications

• Nominal Size: 8 IN
• Connection Type: Buttweld
• Pressure Rating: 285 PSIG Non-Shock
• Pressure Class: Class 150
• Temperature Rating: -20 To 1000 DEG F
• Body Material: Cast Steel
• Operator Type: Handwheel
• Handle Material: Malleable Iron
• Stem Material: 410 Stainless Steel
• Packing Material: Graphite Stem
• Seat Material: Cast Steel
• Material Standard: Body, Seat And Bonnet: ASTM A216 Grade WCB, Stem: ASTM A276, Handle: ASTM A197
• Industry Standards: ASME B16.25, ASME B16.10, Design In Accordance With API-600, NACE Service Either MR-01-75 Or MR-01-03, Test In Accordance With API-598
• Width: 16-1/2 IN
• Handwheel Diameter: 14 IN
• Item Name: Gate Valve
