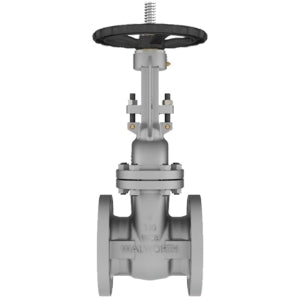

Walworth 24-5202-F-UT-WCB 150 CS Flgd Gate Valve 24 IN

Product Description

The WALWORTH 24-5202-F-UT-WCB gate valve features a 24 IN nominal size and flanged raised face connection. Designed with a cast steel body and a handwheel operator, it is suitable for various industrial applications. It has a pressure rating of 285 PSIG Non-Shock and complies with ASME B16.5 and ASME B16.10 standards.

• Features a temperature rating of -20 To 1000 DEG F
• Constructed with a 410 Stainless Steel stem and graphite stem packing material
• Complies with API-624 and ISO-15848-1 standards for low-emission leakage to atmosphere

Product Highlights

This gate valve is designed for durability and performance, meeting stringent industry standards for reliable operation.

Product Information

Standard Information

• Brand: WALWORTH
• Manufacturer Part Number: 24-5202-F-UT-WCB

Technical Specifications

• Nominal Size: 24 IN
• Connection Type: Flanged Raised Face
• Pressure Rating: 285 PSIG Non-Shock
• Pressure Class: Class 150
• Temperature Rating: -20 To 1000 DEG F
• Body Material: Cast Steel
• Operator Type: Handwheel
• Handle Material: Malleable Iron
• Stem Material: 410 Stainless Steel
• Packing Material: Graphite Stem
• Seat Material: Cast Steel
• Body, Seat And Bonnet Material Standard: ASTM A216 Grade WCB
• Stem Material Standard: ASTM A276
• Handle Material Standard: ASTM A197
• Industry Standards: ASME B16.5, ASME B16.10, Design In Accordance With API-600, NACE Service Either MR-01-75 Or MR-01-03, Test In Accordance With API-598
• Width: 20 IN
• Lead Free: No
• Other Physical Dimension: 32 IN Flange Diameter, 106-3/4 IN Inlet Center To Top Of Handle, 34 IN Handwheel Diameter
• Item Name: Gate Valve
