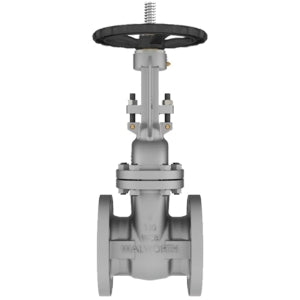

Walworth 12-5202-F-UT-WCB Gate Valve 12 IN

Product Description

The WALWORTH 12-5202-F-UT-WCB is a 12 IN gate valve with a flanged raised face connection. Featuring a cast steel body and handwheel operator, this valve is designed for durability and performance. It adheres to ASME B16.5 and ASME B16.10 industry standards and is tested in accordance with API-598.

• Nominal Size: 12 IN
• Temperature Rating: -20 To 1000 DEG F
• Pressure Rating: 285 PSIG Non-Shock

Product Highlights

This gate valve is suitable for various industrial applications requiring reliable flow control and shutoff capabilities.

Product Information

Standard Information

• Brand: WALWORTH
• Manufacturer Part Number: 12-5202-F-UT-WCB

Technical Specifications

• Nominal Size: 12 IN
• Connection Type: Flanged Raised Face
• Pressure Rating: 285 PSIG Non-Shock
• Pressure Class: Class 150
• Temperature Rating: -20 To 1000 DEG F
• Body Material: Cast Steel
• Operator Type: Handwheel
• Handle Material: Malleable Iron
• Stem Material: 410 Stainless Steel
• Packing Material: Graphite Stem
• Seat Material: Cast Steel
• Material Standard: Body, Seat And Bonnet: ASTM A216 Grade WCB, Stem: ASTM A276, Handle: ASTM A197
• Industry Standards: ASME B16.5, ASME B16.10, Design In Accordance With API-600, NACE Service Either MR-01-75 Or MR-01-03, Test In Accordance With API-598
• Width: 14 IN
• Flange Diameter: 19 IN
• Inlet Center To Top Of Handle: 57-1/2 IN
