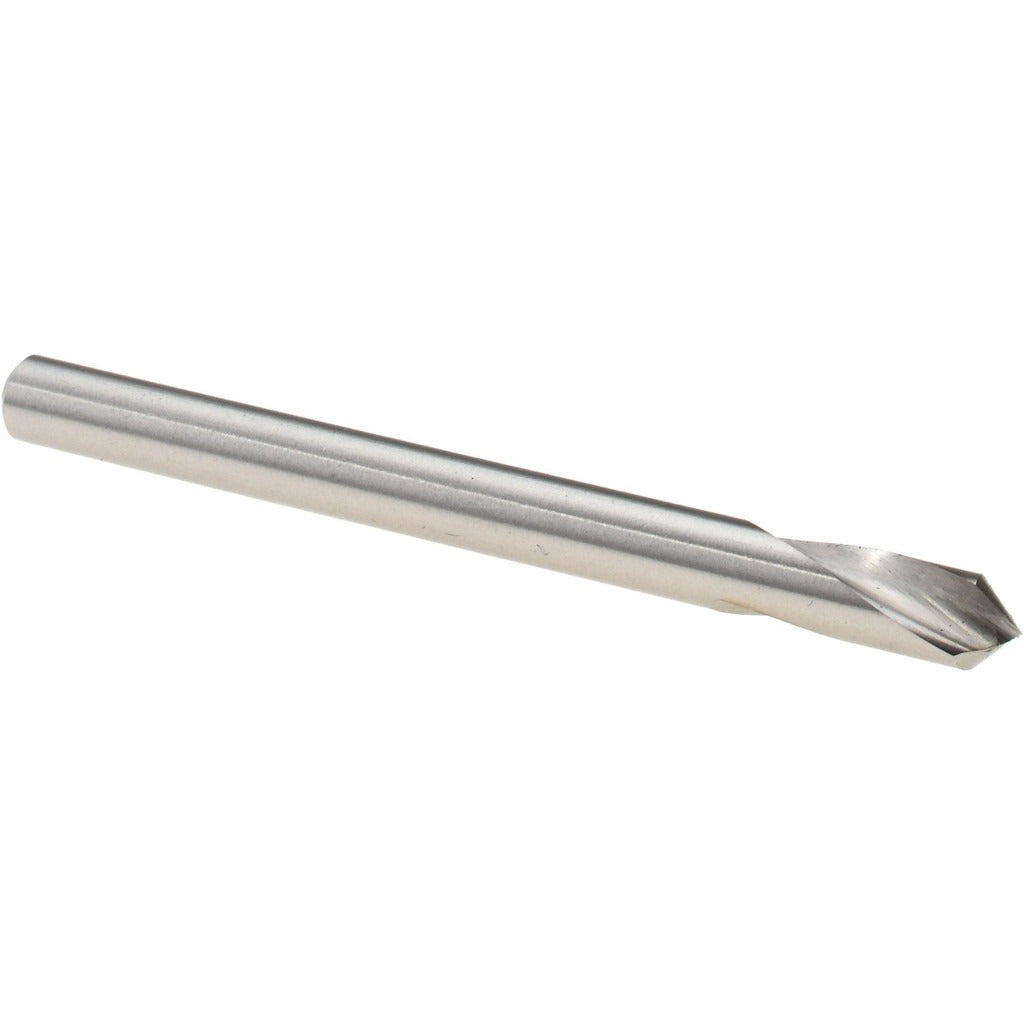

Walter-titex 5153710 Spotting Drill 5mm 90 Deg Hss

Product Description

The WALTER-TITEX 5153710 is a single-ended spotting drill designed to create precise center marks and conical seat locations before full drilling operations. Built from high-speed steel with a bright, uncoated finish, it features a 90-degree point angle and a 5 mm cutting diameter. The spiral flute geometry promotes chip clearance during the spotting cycle. With an overall length of 60 mm and a 15 mm flute length, this tool is sized for general-purpose spotting work on CNC machining centers, drill presses, and manual mills. It is installed and used by machinists and tool-and-die technicians in metal fabrication and production environments.

This spotting drill is suited for general-purpose metal cutting applications where accurate drill entry point location is required before transitioning to a twist drill or boring operation. The straight cylindrical shank accommodates standard drill chucks and collet systems. The right-hand cutting direction is compatible with conventional spindle rotation. The Series A1115S designation places it within a defined WALTER-TITEX tool family, making cross-referencing and replacement straightforward in production tool management systems.

Key Features

• 90-degree point angle for accurate spotting and countersink seat preparation
• High-speed steel construction for general-purpose metal cutting
• Bright, uncoated finish suitable for standard cutting fluids and dry cutting
• Spiral flute design with 2 flutes for controlled chip evacuation
• Straight cylindrical shank fits standard drill chucks and collet holders
• Single-ended tool for dedicated spotting applications

Compatibility

Designed as a general-purpose spotting drill for use in standard drill chucks and collet systems accepting a 5 mm straight cylindrical shank, compatible with CNC and manual machining setups requiring a 90-degree spot geometry.

Installation Notes

Installation is performed by qualified machinists. Ensure the machine spindle is fully stopped and the tool holder is de-energized before inserting or removing the drill. Secure the shank firmly in the chuck or collet to the appropriate holding depth to prevent pullout during operation. Follow applicable shop safety procedures and machine tool manufacturer guidelines when selecting feeds and speeds for the workpiece material.
