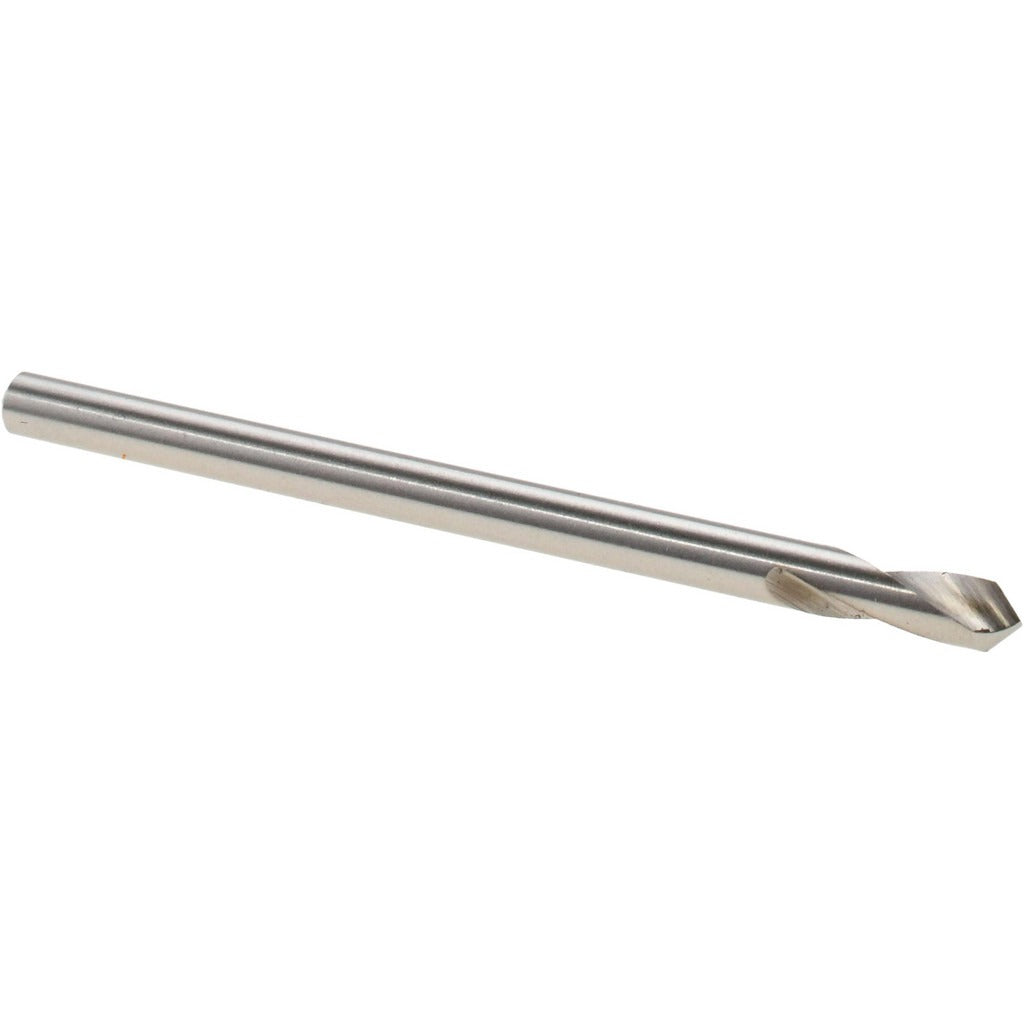

Walter-titex 5153706 Spotting Drill 3mm 90 Degree Hss

Product Description

The WALTER-TITEX 5153706 is a single-ended spotting drill designed to create accurate center indentations before a follow-up twist drill or reamer engages the workpiece. Built from high-speed steel with a bright, uncoated finish, this tool features a 90-degree point angle that delivers precise spotting geometry on a wide range of metallic and non-metallic materials. The 3 mm cutting diameter and 50 mm overall length make it well-suited for light-duty production and repair work. With a two-flute spiral design and a 10 mm flute length, it evacuates chips cleanly while maintaining rigidity through the straight cylindrical shank.

This spotting drill belongs to the WALTER-TITEX A1115S series and is rated for general-purpose tool application. It is used in machine shops, maintenance facilities, and fabrication environments where accurate drill placement is required before a full drill-through operation. The right-hand cutting direction and straight-cylindrical shank make it compatible with standard drill chucks and collet holders found on CNC machining centers, drill presses, and manual mills. It is appropriate for machinists, tool and die makers, and maintenance mechanics working in both production and job-shop settings.

Key Features

• 90-degree point angle for accurate spotting and chamfering prior to drilling
• High-speed steel construction provides durability across general-purpose cutting tasks
• Bright, uncoated finish suitable for use with cutting fluids or dry on compatible materials
• Two-flute spiral geometry promotes chip evacuation in shallow spotting applications
• Straight-cylindrical shank fits standard drill chucks and collet holders without adapters
• Single-ended design for consistent setup in high-production environments

Compatibility

Designed as a general-purpose spotting drill for use in standard drill chucks and collet systems accepting a 3 mm straight-cylindrical shank, suitable for CNC machining centers, drill presses, and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or machine operator. Ensure the machine spindle is fully stopped and the machine is powered down before loading or removing the tool from the chuck or collet holder. Verify runout with a dial indicator after seating to confirm proper alignment before engaging the workpiece. Follow applicable shop safety procedures and machine manufacturer guidelines for spindle speed and feed rate selection.
