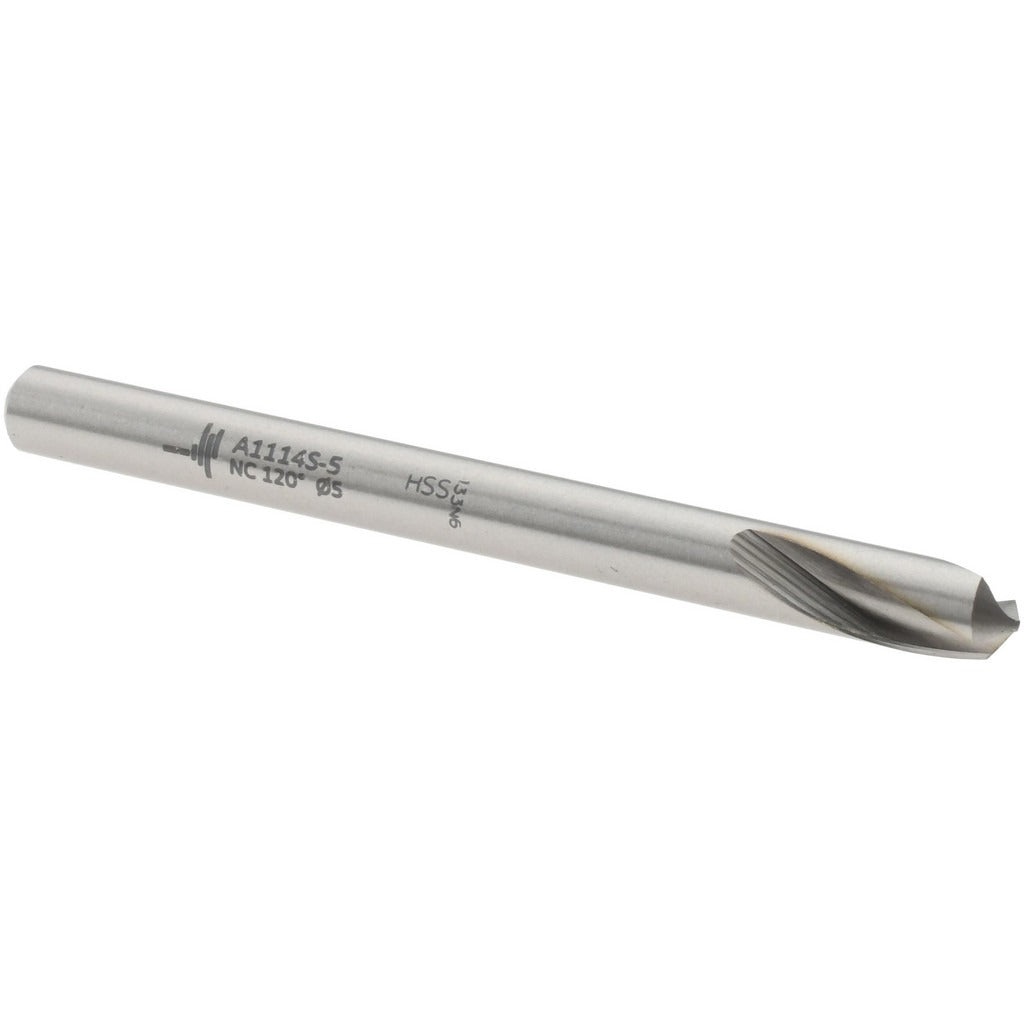

Walter-titex 5153677 Spotting Drill 5mm Hss 120 Point

Product Description

The WALTER-TITEX 5153677 is a single-ended spotting drill designed to create accurate center points and chamfer locations before drilling operations. Built from high-speed steel with a bright uncoated finish, it features a 120-degree point angle that produces clean, consistent seat geometry for follow-on twist drills. The tool has a 5 mm cutting diameter, a 15 mm flute length, and an overall length of approximately 2.36 inches. Two spiral flutes and a straight-cylindrical shank make it compatible with standard drill chucks and collet holders. It is suited for general-purpose spotting across a range of workpiece materials encountered in production and maintenance machining environments.

This spotting drill is used in machining centers, drill presses, and CNC turning centers where accurate hole location is critical before drilling, countersinking, or tapping. Series A1114S is a general-purpose line intended for everyday production use in metal fabrication shops, tool rooms, and maintenance facilities. The right-hand cutting direction is standard for conventional spindle rotation. It is installed one piece at a time and sold in single-unit packages, making it a practical choice for low-volume replacement or tooling qualification.

Key Features

• 120-degree point angle for accurate drill spot geometry
• 5 mm cutting diameter with matching 5 mm straight-cylindrical shank
• 15 mm flute length with two spiral flutes for chip clearance
• High-speed steel construction for general-purpose machining duty
• Bright uncoated finish, right-hand cut, single-ended design
• Series A1114S general-purpose classification

Compatibility

Designed as an OEM-style general-purpose spotting drill compatible with standard drill chucks and collet systems accepting a 5 mm straight-cylindrical shank.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. The spindle must be fully stopped and the machine placed in a safe, locked-out state before inserting or removing the tool from any holder. Confirm runout and chuck grip before initiating a cut. Follow applicable shop safety standards and machine manufacturer guidelines for tooling installation torque and speed selection.
