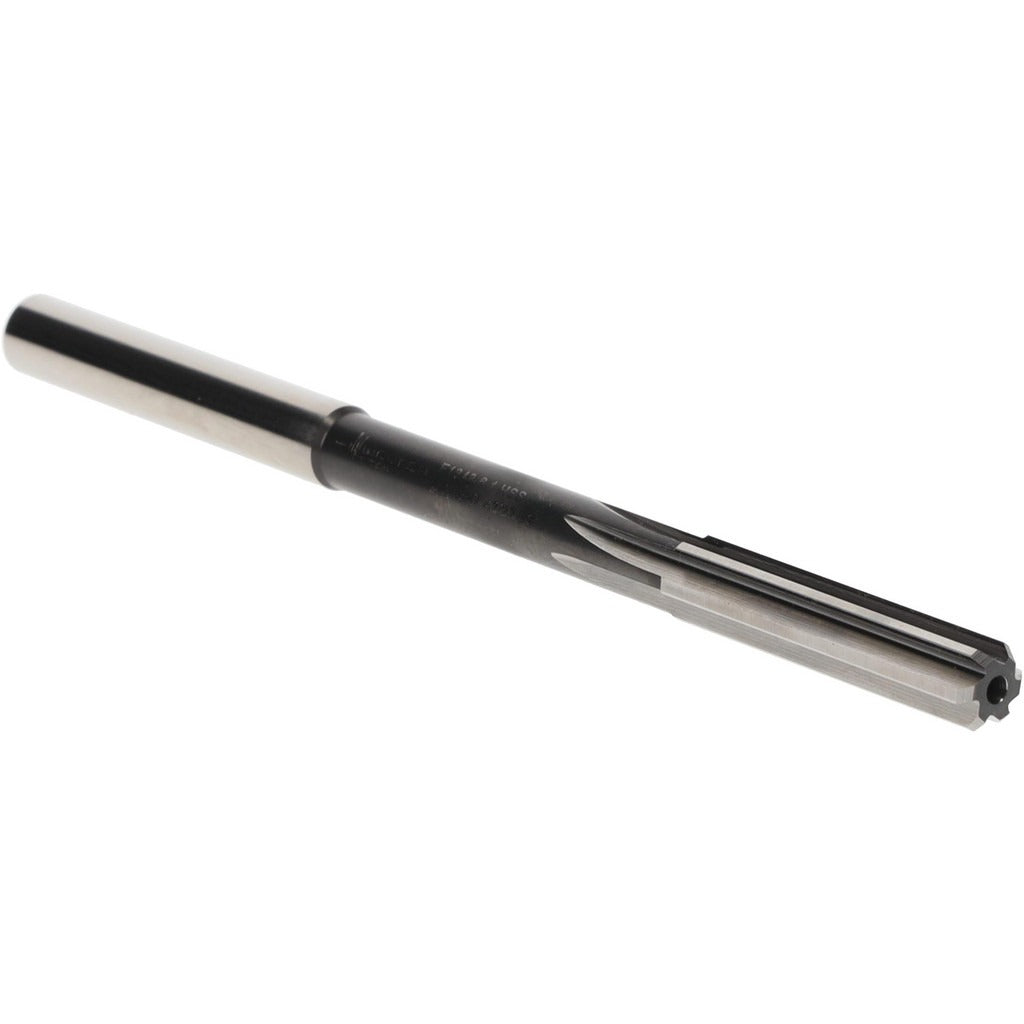

Walter-titex 5071775 Chucking Reamer 6.10mm Cobalt Steel

Product Description

The WALTER-TITEX 5071775 is a straight-flute chucking reamer ground from cobalt steel for sizing and finishing bored or drilled holes to a precise 6.10mm diameter. It carries an h7 tolerance, making it appropriate for close-fit applications where hole quality and dimensional accuracy are critical. The bright, uncoated finish suits general-purpose use across a range of workpiece materials. With an overall length of 101.00mm and a 28.00mm flute length, the reamer is sized for bench, lathe, or machining-center use in metalworking and fabrication shops.

This reamer is applied in precision hole-finishing operations where a drilled or bored hole must be brought to a controlled final diameter. The h7 tolerance class makes it well suited for locating fits, dowel-bore sizing, and bearing-seat preparation in light to medium manufacturing and tool-room work. Coolant-through capability is not included, so flood coolant or cutting oil applied at the entry is the standard approach. The straight-cylindrical shank seats directly in a collet chuck, drill chuck, or floating reamer holder.

Key Features

• 6.10mm finished diameter with h7 tolerance for close dimensional control
• Cobalt steel construction for improved heat and wear resistance over standard HSS
• 6-flute straight geometry for smooth, even cutting action
• Right-hand cutting direction, compatible with standard spindle rotation
• Bright uncoated finish suitable for a broad range of ferrous and non-ferrous materials
• Straight-cylindrical shank for direct chuck or collet mounting

Compatibility

Designed as an OEM-style chucking reamer in the WALTER-TITEX F1342 series for standard straight-cylindrical chuck mounting in manual or CNC machining applications requiring a 6.10mm finished bore diameter.

Installation Notes

Chucking reamers are installed and operated by qualified machinists or toolroom personnel. Power down and lock out the machine spindle before changing tooling. Secure the straight-cylindrical shank fully in a collet, drill chuck, or floating holder to minimize runout before reaming. Apply a suitable cutting fluid at the cutting zone throughout the operation; never run a reamer dry in steel.
