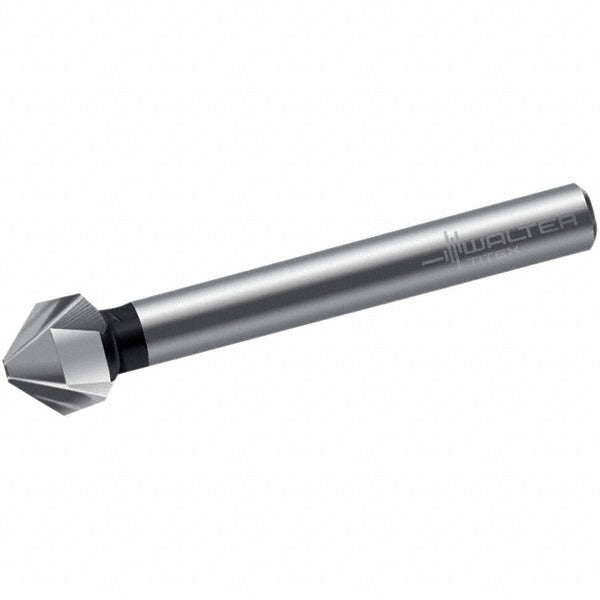

Walter-titex 5071396 Countersink 15mm 90 Deg 3 Flute Hss

Product Description

The WALTER-TITEX 5071396 is a single-end, three-flute countersink designed for precision chamfering and seat preparation across a wide range of materials. Built from high-speed steel throughout, including the shank, it produces a 90-degree included angle and a 15mm head diameter in a right-hand cutting configuration. The straight-cylindrical shank measures 10mm in diameter, and the tool runs to an overall length of 60mm (2.36 inches). The bright, uncoated finish suits general-purpose countersinking without specialized surface treatment. Licensed tradespeople and machinists rely on this tool for consistent, repeatable countersinks in production and maintenance environments.

This countersink is suited for use on aluminum, steel, stainless steel, cast iron, malleable cast iron, gray cast iron, spheroidal cast iron, vermicular cast iron, iron alloy, cast steel, cobalt alloy, nickel alloy, titanium, titanium alloy, non-ferrous metals, plastic, fiber-reinforced plastic, and graphite. Its minimum cutting diameter starts at 3.2mm, making it effective for light to moderate chamfer work in both manual and CNC machine setups where a 90-degree seat angle is required.

Key Features

• 90-degree included angle for standard countersink seat geometry
• 15mm head diameter with a 3.2mm minimum cutting diameter
• Three flutes for smooth chip evacuation and improved finish
• High-speed steel construction for durability across ferrous and non-ferrous materials
• 10mm straight-cylindrical shank for secure, consistent chuck or collet holding
• Right-hand cutting direction compatible with standard machine spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-specification countersink for machine shops, maintenance facilities, and fabrication operations requiring a 90-degree, 15mm HSS countersink with a straight-cylindrical shank.

Installation Notes

This countersink is installed by machinists or tool-and-die professionals in a drill press, milling machine, or CNC machining center. Secure the straight-cylindrical shank in a compatible chuck or collet before use and verify that spindle rotation is set to right-hand (clockwise). Power down and de-energize the machine spindle before changing tooling. Apply appropriate cutting fluid or lubrication based on the workpiece material to extend tool life and maintain finish quality.
