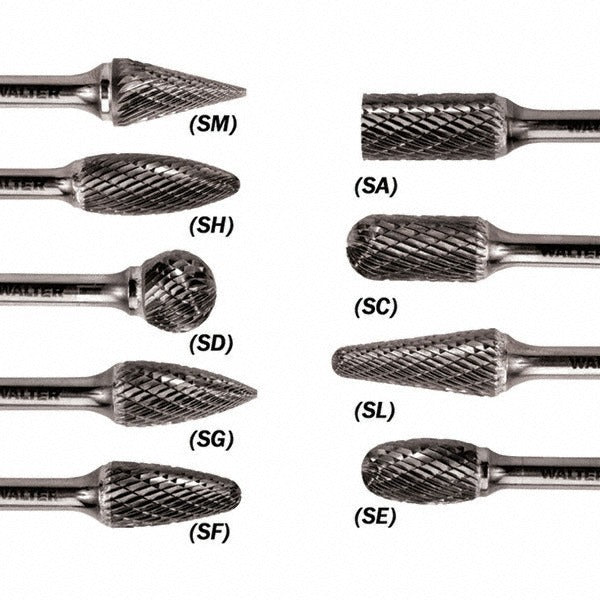

Walter Surface Technologies 01V029 Flame Carbide Bur

Product Description

The WALTER SURFACE TECHNOLOGIES 01V029 is a flame-shaped carbide abrasive bur designed for aggressive material removal on metal workpieces. Fitted with a 1/4-inch shank and a 5/16-inch cutting diameter, this double-cut bur delivers fast stock removal while maintaining control in confined areas. The carbide head runs up to 68,000 RPM, making it suitable for use with high-speed die grinders and rotary tools. Machinists, welders, and fabricators reach for this style of bur when blending welds, deburring edges, or working in recessed profiles where flat or cylindrical tools cannot access.

This bur is suited to a wide range of metalworking and fabrication tasks in both shop and field environments. The flame head geometry is effective for profiling, contouring, and cavity work on steel, stainless steel, cast iron, superalloys, and titanium. With a 3/4-inch length of cut, it provides adequate engagement depth for most deburring and finishing operations without excessive tool overhang. It fits standard 1/4-inch collet die grinders commonly used in industrial maintenance, pipe fitting, and aerospace fabrication.

Key Features

• Flame head geometry for contouring, profiling, and recessed cavity work
• Double-cut tooth style for efficient stock removal and smooth finish
• Solid carbide head rated to 68,000 RPM for high-speed die grinder use
• 5/16-inch cutting diameter with 3/4-inch length of cut
• 1/4-inch shank fits standard collet die grinders
• Uncoated carbide head compatible with steel, stainless steel, cast iron, superalloys, and titanium

Compatibility

Compatible with die grinders and rotary tools equipped with a 1/4-inch collet. Rated for use on steel, stainless steel, cast iron, superalloys, and titanium per manufacturer material application data.

Installation Notes

Installation and use should be performed by qualified machinists, fabricators, or maintenance technicians familiar with rotary cutting tools. Confirm the tool spindle is fully stopped and the grinder is disconnected from power before inserting or removing the bur from the collet. Always verify that operating RPM of the host tool does not exceed the 68,000 RPM maximum rating of this bur. Eye protection and appropriate PPE are required during operation.
