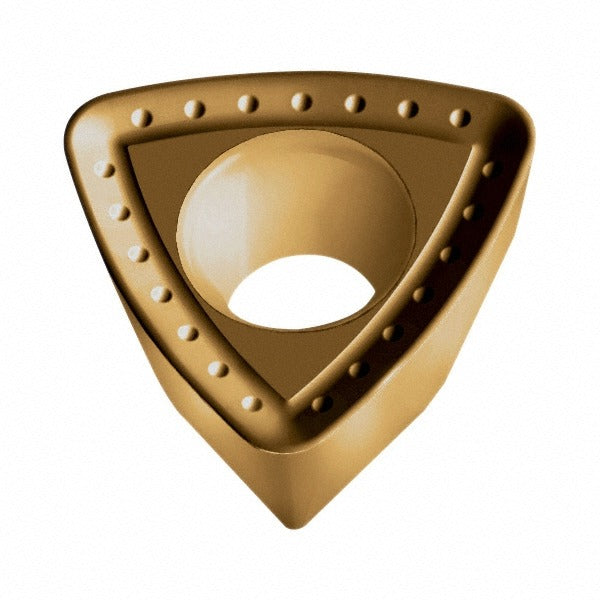

Walter 5888067 Milling Insert P26335R14 WKP35S Carbide

Product Description

The WALTER 5888067 is a solid carbide milling insert carrying ANSI and ISO designation P26335R14 WKP35S. This triangular, single-sided insert is engineered for milling operations in steel and cast iron. It features a CVD-applied multilayer coating of TiCN, Al2O3, and TiCN in the WKP35S grade, which is rated for material grades P35 and K35. With a 60-degree included angle, a positive rake angle of 10 degrees, and a 14-degree relief angle, the insert is optimized for controlled chip formation and extended tool life in demanding milling applications. Right-hand cutting orientation and a chamfered, honed edge style round out the core geometry. Licensed machinists and CNC tooling technicians are the primary installers.

This insert is designed for milling steel and cast iron workpieces in both production and job-shop environments. It fits the F2330 cutter series and uses a screw-based insert holding method. The common chip breaker geometry makes it suitable across a range of depths, with a maximum depth of cut of 0.3280 inches. The P26335R14 WKP35S insert is appropriate for face milling and shoulder milling applications where consistent surface finish and edge integrity are required. Minimum order quantity is 10 pieces; packaging quantity is 1.

Key Features

• Solid carbide construction with CVD multilayer coating: TiCN, Al2O3, TiCN
• WKP35S grade rated for P35 and K35 material groups covering steel and cast iron
• Triangular insert shape with 3 cutting edges for extended insert life per piece
• Positive rake angle and chamfered, honed cutting edge for reduced cutting forces
• Right-hand orientation with screw-type insert holding for secure seating
• Compatible with F2330 cutter series

Compatibility

Designed for use in the F2330 cutter series. Carries ANSI and ISO code P26335R14 WKP35S. Suited for milling steel and cast iron workpieces at material grades P35 and K35.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the machine is locked out before seating or indexing inserts. Use the appropriate torx or hex key to torque the clamping screw per the cutter body manufacturer specifications. Inspect the insert pocket for debris or damage before seating a new insert to prevent premature edge failure.
