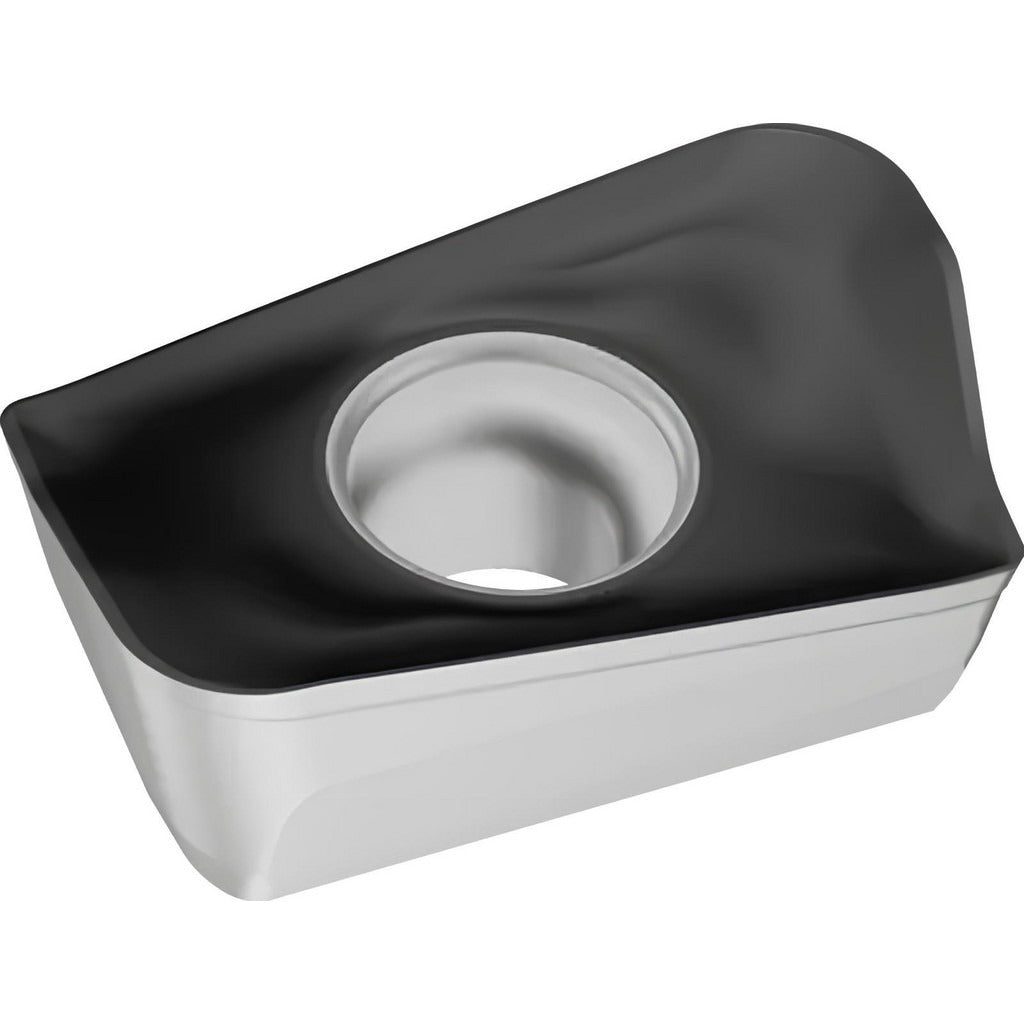

Walter 5886299 Milling Insert ADMT160625R-F56 WKP35S Carbide

Product Description

The WALTER 5886299 is a solid carbide milling insert in the ADMT series, designed for face and shoulder milling applications in steel and cast iron. Carrying the manufacturer grade WKP35S and a CVD-applied multilayer coating of TiCN / Al2O3 / TiCN, this insert delivers thermal resistance and edge stability under continuous and interrupted cuts. The parallelogram insert shape, 85-degree included angle, and positive rake geometry reduce cutting forces and support clean chip evacuation. Machining professionals and toolroom technicians install this insert into compatible WALTER cutter bodies as a screw-held, single-sided, right-hand unit with two cutting edges per insert.

This insert is suited for medium to roughing milling operations on steel and cast iron workpieces in both production and job-shop environments. The F56 chip breaker geometry and chamfered-and-honed cutting edge style make it appropriate for moderate depths of cut up to 0.6890 inches. The WKP35S grade targets material application codes P and K, covering a broad range of carbon steels, alloy steels, and gray or nodular cast iron. Compatible cutter series include F2010, F4042, and F4238.

Key Features

• WKP35S solid carbide grade with CVD multilayer TiCN / Al2O3 / TiCN coating for heat and wear resistance
• Positive rake angle of 16 degrees reduces cutting forces on steel and cast iron
• F56 chip breaker with chamfered and honed cutting edge for controlled chip flow
• Right-hand, single-sided insert with 2 usable cutting edges per piece
• Screw-held mounting compatible with WALTER F2010, F4042, and F4238 cutter bodies
• Conforms to ANSI and ISO standards under code ADMT160625R-F56 WKP35S

Compatibility

Designed for use in WALTER cutter series F2010, F4042, and F4238. ANSI and ISO code: ADMT160625R-F56 WKP35S. Primary workpiece materials are steel (P35) and cast iron (K35).

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing inserts. Use the correct WALTER torx or hex key to tighten the clamping screw to the tool manufacturer specification listed in the cutter body documentation - do not over-torque. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
