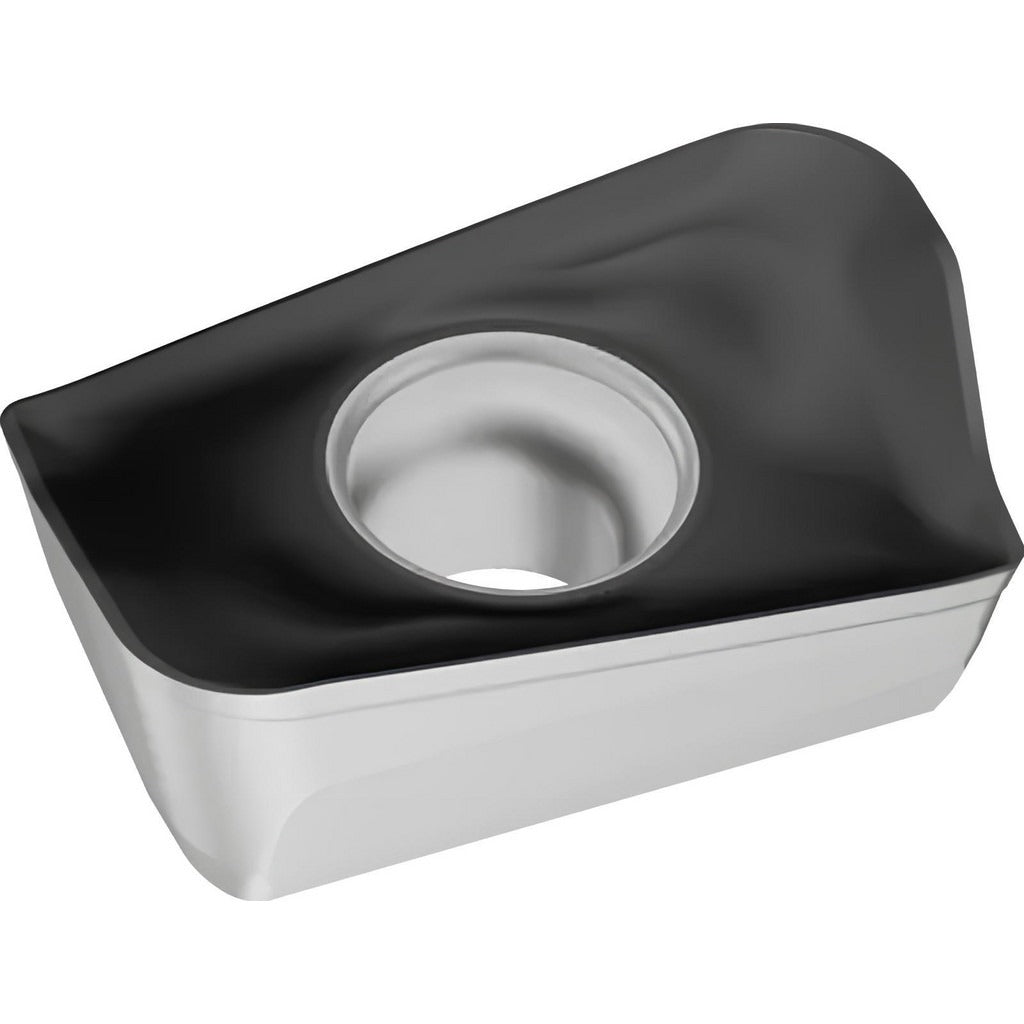

Walter 5886271 Milling Insert WKP35S Solid Carbide

Product Description

The WALTER 5886271 is a solid carbide milling insert in the ADMT series, designed for high-performance face and shoulder milling operations in industrial machining environments. Carrying the WKP35S manufacturer grade, this insert features a CVD-applied multilayer coating of TiCN / Al2O3 / TiCN for wear resistance across demanding cutting conditions. The parallelogram insert shape (ADMT style) with a positive rake angle of 16 degrees and a 15-degree relief angle promotes clean chip evacuation and reduced cutting forces. Two chamfered and honed cutting edges are available per insert. Installation and tooling setup are handled by machining professionals and CNC operators working with compatible Walter cutter bodies.

This insert is suited for milling steel and cast iron workpieces across both roughing and semi-finishing applications. The F56 chip breaker geometry is optimized for these material groups. The right-hand cutting configuration and screw-held mounting method are standard for compatible cutter bodies. Compatible cutter series include F2010, F4042, and F4138 as specified by the manufacturer. The WKP35S grade covers material application codes P and K, corresponding to steel and cast iron workpiece families respectively.

Key Features

• CVD multilayer coating: TiCN / Al2O3 / TiCN for extended tool life in steel and cast iron
• Positive rake angle (16 degrees) reduces cutting forces and heat generation
• F56 chip breaker geometry optimized for P and K material groups
• Two usable cutting edges per insert (single-sided)
• Right-hand cut, screw-held mounting for secure clamping in compatible toolholders
• Conforms to ANSI and ISO standards under code ADMT120420R-F56 WKP35S

Compatibility

Compatible with Walter cutter series F2010, F4042, and F4138. Designed for ADMT-style insert seats with a 12-size insert designation and screw-held clamping. Suitable for machining steel and cast iron (material codes P and K).

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the appropriate Torx or hex key as specified by the cutter body manufacturer when seating the screw-held insert. Inspect the insert pocket and seating surface for chips or debris before installing a new insert to ensure proper seating and runout.
