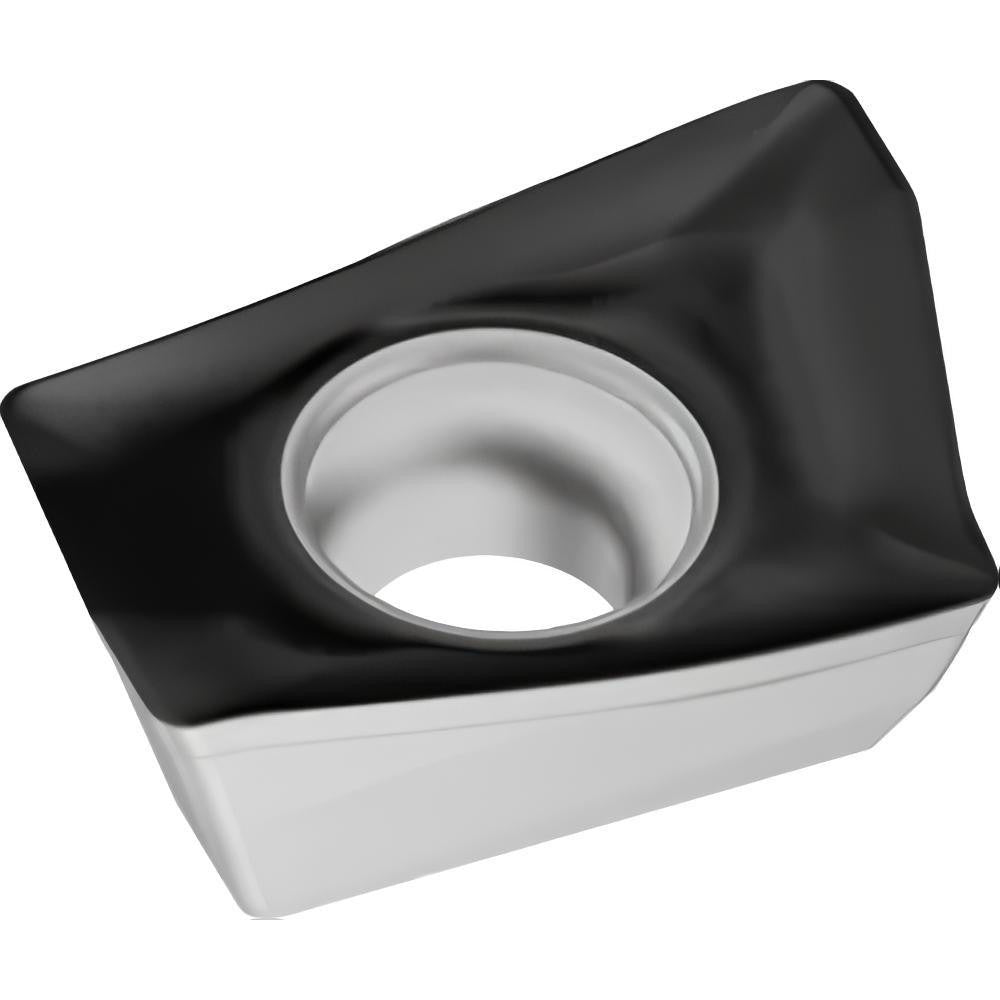

Walter 5886204 Milling Insert ADMT080304R-D56 WKP35S

Product Description

The WALTER 5886204 is a solid carbide milling insert in the ADMT series, designed for high-performance face and shoulder milling operations on steel and cast iron. It carries the WKP35S manufacturer grade and is coated via CVD process with a TiCN / Al2O3 / TiCN multilayer stack, which delivers wear resistance and thermal stability under demanding cutting conditions. The insert measures 0.3750 inches in length and 0.2660 inches in width, with a thickness of 0.1320 inches and a corner radius of 0.0157 inches. It features a positive rake geometry with a 10-degree rake angle and a 15-degree relief angle. Installation and tooling setup is performed by CNC machinists and tool crib technicians in production machining environments.

This insert is rated for primary workpiece materials of steel (ISO material code P) and cast iron (ISO material code K), corresponding to material grades P35 and K35. It is suited for use in production milling operations where consistent edge life and surface finish on ferrous materials are required. The D56 chip breaker geometry controls chip evacuation across a range of depths. Compatible cutter series include F4038 and F4042, as specified by WALTER. The insert is screw-held and designed for single-sided use with a right-hand cutting orientation.

Key Features

• CVD multilayer coating: TiCN / Al2O3 / TiCN for wear and heat resistance on steel and cast iron
• WKP35S grade optimized for P35 and K35 material classifications
• Positive rake angle (10 degrees) with honed cutting edge for reduced cutting forces
• D56 chip breaker for controlled chip formation and evacuation
• Maximum depth of cut: 0.3750 inches
• Right-hand insert orientation; screw-held mounting method
• Compliant with both ANSI and ISO standards; ANSI/ISO code ADMT080304R-D56 WKP35S

Compatibility

Designed for use in WALTER cutter series F4038 and F4042. The ANSI and ISO designation is ADMT080304R-D56 WKP35S. Insert size code is 080304. Fits toolholders accepting ADMT-series inserts with an inscribed circle of 0.2660 inches and the screw-held retention method.

Installation Notes

Installation should be performed by qualified CNC machinists or tooling technicians with the spindle fully stopped and machine in a locked-out, tagged-out state per facility lockout/tagout procedures. Use the appropriate torx or hex key specified by the cutter body manufacturer when seating the screw-held insert. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Do not exceed the maximum depth of cut rating for the cutter body in use.
