Walter 5623813 Milling Insert SNHX1205ANN-K88 WXN15 Carbide

Product Description

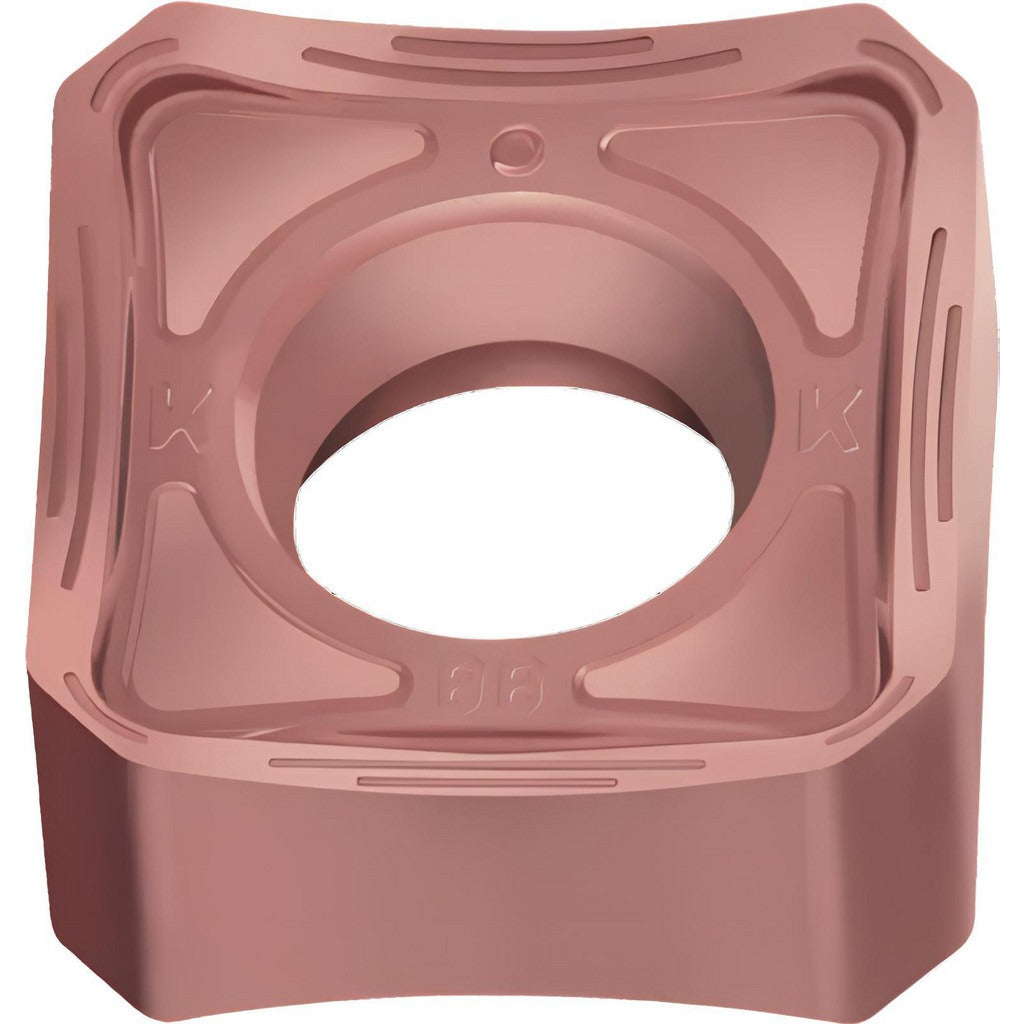

The WALTER 5623813 is a solid carbide milling insert in the SNHX series, designed for high-performance milling of non-ferrous metals. Carrying manufacturer grade WXN15 and ANSI/ISO code SNHX1205ANN-K88, it features a TiCN PVD coating applied over a square insert body with a 90-degree included angle and sharp cutting edges. The insert measures 0.5000 inches in inscribed circle diameter and 0.2180 inches thick, with a negative rake geometry at 25 degrees. Eight cutting edges per insert and a double-sided configuration maximize tool life per unit. Licensed machinists and CNC tooling technicians working on aluminum, copper, and other non-ferrous materials will find this insert sized and graded for demanding production cuts.

This insert is intended for milling operations on non-ferrous metals in both production and job-shop environments. It is compatible with cutter series F2010 and M5009 as specified by the manufacturer. The K88 chip breaker geometry supports controlled chip evacuation during high-speed passes in aluminum and similar materials. Insert holding is via screw clamp, making it suitable for standard indexable milling cutter bodies designed for SNHX-style inserts at size code 1205. The neutral hand orientation allows use in a range of cutter configurations without handedness restrictions.

Key Features

• Solid carbide substrate with TiCN PVD coating for wear resistance in non-ferrous applications
• 8 cutting edges per double-sided insert - maximizes cost-per-edge value
• Sharp cutting edge style with 25-degree rake angle and K88 chip breaker for clean chip control
• Neutral hand orientation - compatible with multiple cutter body configurations
• Screw-clamp holding method for secure, repeatable seating
• Meets ANSI and ISO standards; ANSI/ISO code SNHX1205ANN-K88 WXN15

Compatibility

Compatible with cutter series F2010 and M5009 as stated by the manufacturer. Designed for SNHX-style indexable milling cutter bodies accepting size code 1205 inserts with screw-clamp retention.

Installation Notes

Installation is performed by qualified CNC machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench and cutter-body screws specified by the cutter manufacturer - do not substitute fasteners. Inspect the cutter pocket and seating surface for chips or damage before seating the new insert to ensure proper contact and runout.
