Walter 5205207 Indexable Square-shoulder End Mill 1 in

Product Description

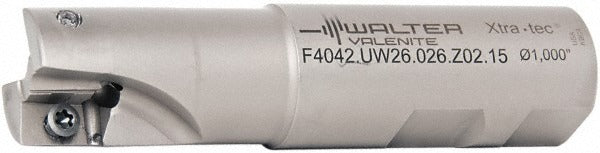

The WALTER 5205207 is an indexable square-shoulder end mill designed for 90-degree shoulder milling operations in metal cutting applications. It accepts two AD.T 1606.. series inserts and delivers a 1-inch (25.40 mm) cutting diameter with a maximum depth of cut of 0.591 inches (15 mm). The overall length is 3.871 inches, and the tool mounts via a 1-inch Weldon Flat shank for secure, anti-rotation clamping in milling chucks and holders. This cutter is installed and operated by machinists and tool-and-die professionals working on CNC or manual milling machines.

This end mill is suited for square-shoulder profiling, slotting, and step milling on ferrous and non-ferrous materials. The 90-degree lead angle produces a true square shoulder, making it appropriate for workpiece features that require perpendicular walls. The ISO designation for this cutter body is F4042.UW26.026.Z02.15, confirming its place in the F4042 cutter style family. It meets both ISO and ANSI standards, making it applicable across a wide range of shop environments.

Key Features

• 90-degree lead angle for true square-shoulder milling
• Accepts two AD.T 1606.. series indexable inserts
• 1-inch Weldon Flat shank provides anti-rotation security in milling holders
• Maximum depth of cut of 0.591 inches (15 mm) per pass
• Complies with ISO and ANSI standards
• ISO cutter designation F4042.UW26.026.Z02.15

Compatibility

Designed for use with AD.T 1606.. series indexable inserts. Compatible with milling machines and machining centers that accept a 1-inch Weldon Flat shank toolholder.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's setup procedures. Secure the Weldon Flat shank fully into a properly sized milling chuck or side-lock holder before operation, ensuring the set screw engages the flat. Confirm insert seating and torque insert screws according to the insert manufacturer's specification before running the cutter. Always power down and lock out the machine spindle before changing inserts or removing the tool body.
