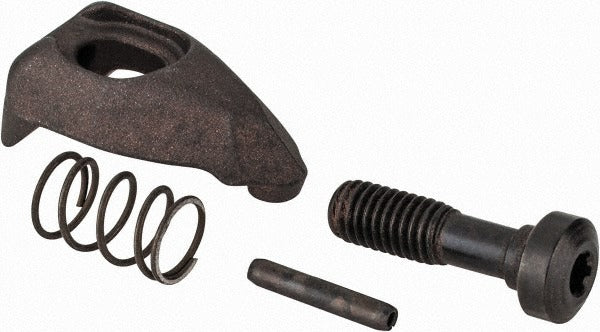

Walter 5098060 Pk Clamp Set Indexable Toolholders

Product Description

The WALTER 5098060 is a PK-style clamp set designed for use with Walter Capto series indexable toolholders. The clamp set secures indexable inserts in turning toolholders, maintaining proper seating and cutting geometry during machining operations. Weighing 0.5 pounds, this set provides the clamping hardware needed to retain inserts in PK-style pocket configurations. It is installed by machinists and tooling technicians in turning centers and CNC lathe applications where Walter Capto toolholder systems are in use. The minimum order quantity is 5 units, with individual package quantity of 1.

This clamp set is used in production turning environments where Walter Capto series toolholders are mounted on CNC lathes or turning centers. It is suited for both roughing and finishing operations where reliable insert retention is critical to maintaining dimensional accuracy and tool life. The set is compatible across a broad range of DCBNR, DCKNR, DCLNR, and DCRNR style toolholders in the Walter Capto series, covering multiple shank sizes and insert configurations commonly found in industrial machining cells.

Key Features

• PK clamp style designed for Walter Capto series indexable turning toolholders
• Compatible with DCBNR, DCKNR, DCLNR, and DCRNR toolholder families across multiple shank sizes
• Lightweight hardware at 0.5 pounds for easy handling and storage
• Provides consistent insert seating and retention in PK-style pockets
• Sold individually per package; minimum order quantity of 5 units

Compatibility

Compatible with the following Walter Capto series toolholders: DCBNR/L2525M12, DCBNR/L3225P12, DCKNR/L2525M12, DCKNR/L3225P12, DCLNR/L1616H09, DCLNR/L1616H12, DCLNR/L2020K09, DCLNR/L2020K12, DCLNR/L2525M09, DCRNR/L164DM1, DCRNR/L204DM1, DCBNR/L2525M16, DCBNR/L3232P16, DCBNR/L3232P19, DCKNR/L164D, DCKNR/L205D, DCKNR/L3232P16, DCLNR/L103A, DCLNR/L104A, DCLNR/L123C, DCLNR/L124B, DCLNR/L163D, DCLNR/L164C, DCLNR/L164D, DCLNR/L165D, DCLNR/L166D, DCLNR/L204D, DCLNR/L205D, DCLNR/L206D, DCLNR/L24.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Before replacing or adjusting clamp components, ensure the machine is powered down, the spindle is stopped, and all motion has ceased. Use the appropriate torx or hex key as specified by the toolholder manufacturer when tightening clamp screws. Do not overtighten clamp hardware, as this can damage the insert pocket or seating surface.
