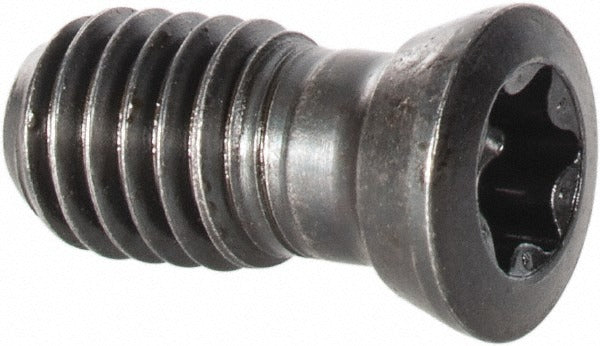

Walter 5006673 Cap Screw Indexables T20 Torx M5

Product Description

The WALTER 5006673 is a countersunk-head cap screw designed to secure indexable inserts in face mill cutter toolholders. It features an M5 thread, a T20 Torx drive, and a flat point profile. At 0.4331 inches overall length, this screw is sized for compact toolholder pockets where precise insert seating is critical. Installation requires the WALTER FS228 key driver for proper torque engagement. It is compatible with the F2010 toolholder style and is used in production machining environments where indexable insert retention integrity directly affects cut quality and tool life.

This cap screw is used in face milling applications with WALTER F2010-style toolholders. It is suited for both roughing and finishing operations where indexable inserts in the 0.50 inch and 0.625 inch inscribed circle range are employed. Compatible inserts include SEHT, SEHW, SEKN, SEKR, SPHT, SPHW, SPKT, SPMT, SPMW, TPAW, and TPJW series geometries. Machinists and toolroom technicians working with WALTER face mill cutters will encounter this screw during routine insert changes and toolholder maintenance.

Key Features

• M5 thread size for compatibility with F2010 toolholder insert pockets
• T20 Torx drive for positive engagement and reduced cam-out risk during insert changes
• Countersunk head profile seats flush within the insert pocket
• Flat point design maintains consistent insert positioning against the pocket floor
• Requires WALTER FS228 key driver for correct installation
• Compatible with a broad range of SEHT, SPMT, SPMW, and TPAW series indexable inserts

Compatibility

Compatible with the WALTER F2010 toolholder style and the following indexable inserts: SEHT1204AFN, SEHT1204AFN-K88, SEHW1204AFN, SEHW1504AFN, SEKN1504AFN, SEKR1204AFN, SPHT120408-G88, SPHW120412-A57, SPKT1504AZN, SPMT120408-D51, SPMT120408-F55, SPMW120408-A57, SPMW120408T-A27, TPAW2204PPN, and TPJW2204PPN. Covers insert inscribed circle sizes of 0.500 inches and 0.625 inches. Recommended driver: WALTER FS228.

Installation Notes

This screw is installed and serviced by machinists or toolroom technicians during indexable insert changes on face mill cutter bodies. Always disengage the machine spindle and ensure the toolholder is secured in a vise or fixture before replacing insert screws. Use only the specified WALTER FS228 Torx key driver to avoid stripping the T20 socket or damaging the countersunk head seating surface. Inspect the screw and toolholder pocket threads for wear or contamination before reinstalling.
