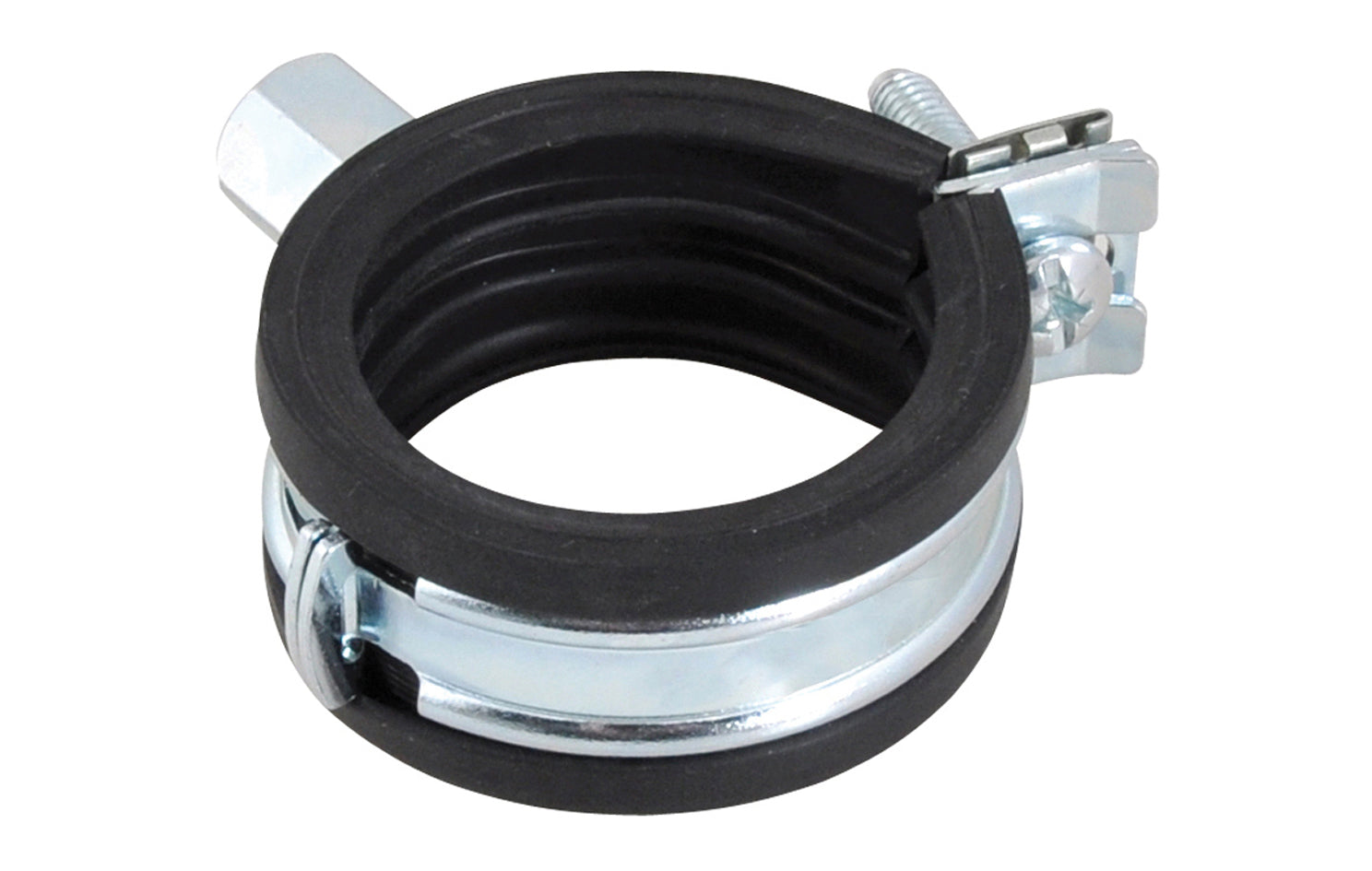

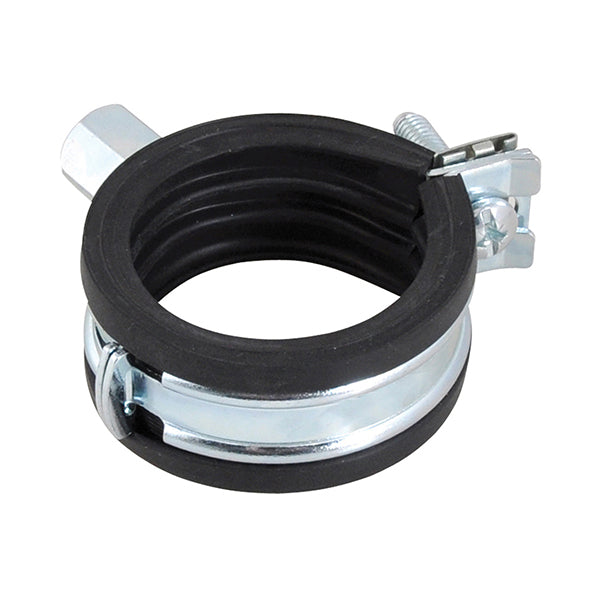

Walraven CR3379043 Bismat Flash

Product Description

WALRAVEN's CR3379043 BISMAT Flash is a single screw clamp featuring a BISMAT Flash quick locking system, allowing for easy one-handed closure. The locking screw can be secured without tools. Constructed from zinc plated steel, it includes a noise insulating lining made of black EPDM rubber. It is age resistant, sound insulating according to DIN 4109, fire safety tested, and plenum rated to ASTM E-84.

• Features BISMAT Flash quick locking system
• Constructed from zinc plated steel
• Noise insulating EPDM rubber lining

Product Highlights

Single screw clamp with quick locking system, made from zinc plated steel with noise insulation. Ideal for various applications requiring secure and noise-dampened support.

Product Information

Standard Information

• Brand: WALRAVEN
• Manufacturer Part Number: CR3379043

Technical Specifications

• Part No.: CR3379043
• D (mm): 40 - 43
• IP ("): 1¼
• CT ("): 1½
• B ("): 2.9
• H ("): 2.4
• h ("): 1.30
• b x s (mm): 20 x 1.25
• cs: M6
• F a,z (lbf): 180
• Pack 1: 50
• Hanger Size: 1-1/2"
• Material: Zinc Plated Steel
