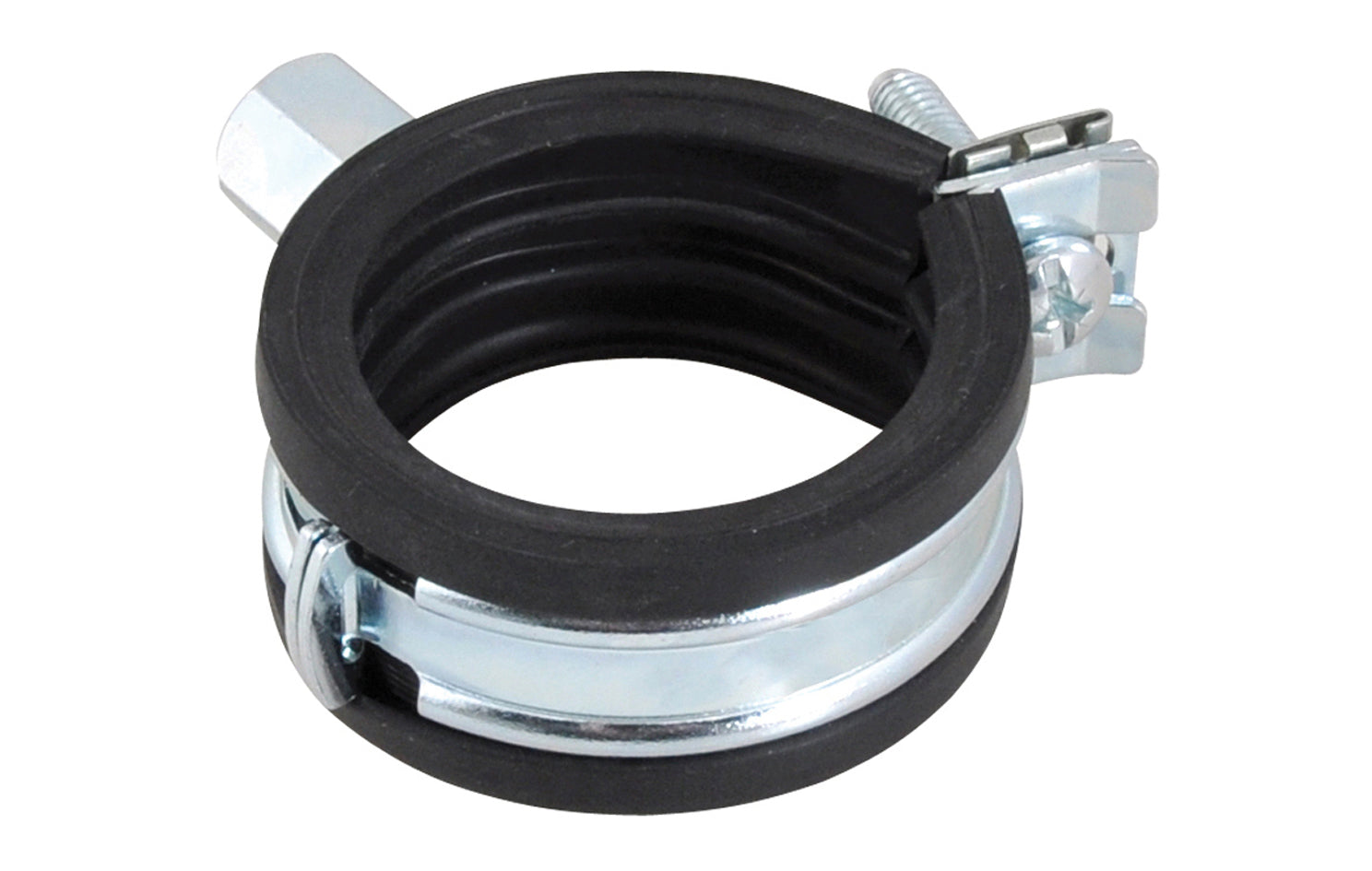

Walraven CR3379035 bismat® flash clamp cts 1-1/4 inches x ips 1 inches, 31-35mm

Product Description

The WALRAVEN CR3379035 BISMAT® Flash Clamp is designed for metal pipes, featuring a single screw and a BISMAT® Flash quick locking system for easy one-handed closure. The locking screw can be secured without tools. Constructed from zinc plated steel with a noise insulating, age resistant, black EPDM rubber lining. Sound insulating according DIN 4109 and tested for fire safety. Plenum rated - tested to ASTM E-84.

• Single screw clamp
• Features BISMAT® Flash quick locking system
• Easy one-hand closure

Product Highlights

This BISMAT® Flash clamp is made from zinc plated steel with noise insulating EPDM rubber lining and is plenum rated.

Product Information

Standard Information

• Brand: WALRAVEN
• Manufacturer Part Number: CR3379035

Technical Specifications

• Part No.: CR3379035
• D (mm): 31 - 35
• IP ("): 1
• CT ("): 1¼
• B ("): 2.6
• H ("): 2.0
• h ("): 1.20
• b x s (mm): 20 x 1.25
• cs: M6
• F a,z (lbf): 180
• Pack 1: 50
• Brand: Walraven
• MFR Part No: CR3379035
• TSCO Part Number: 581486
• Size: CTS 1-1/4" x IPS 1", 31-35MM
• Material: steel
• Finish: Zinc plated
