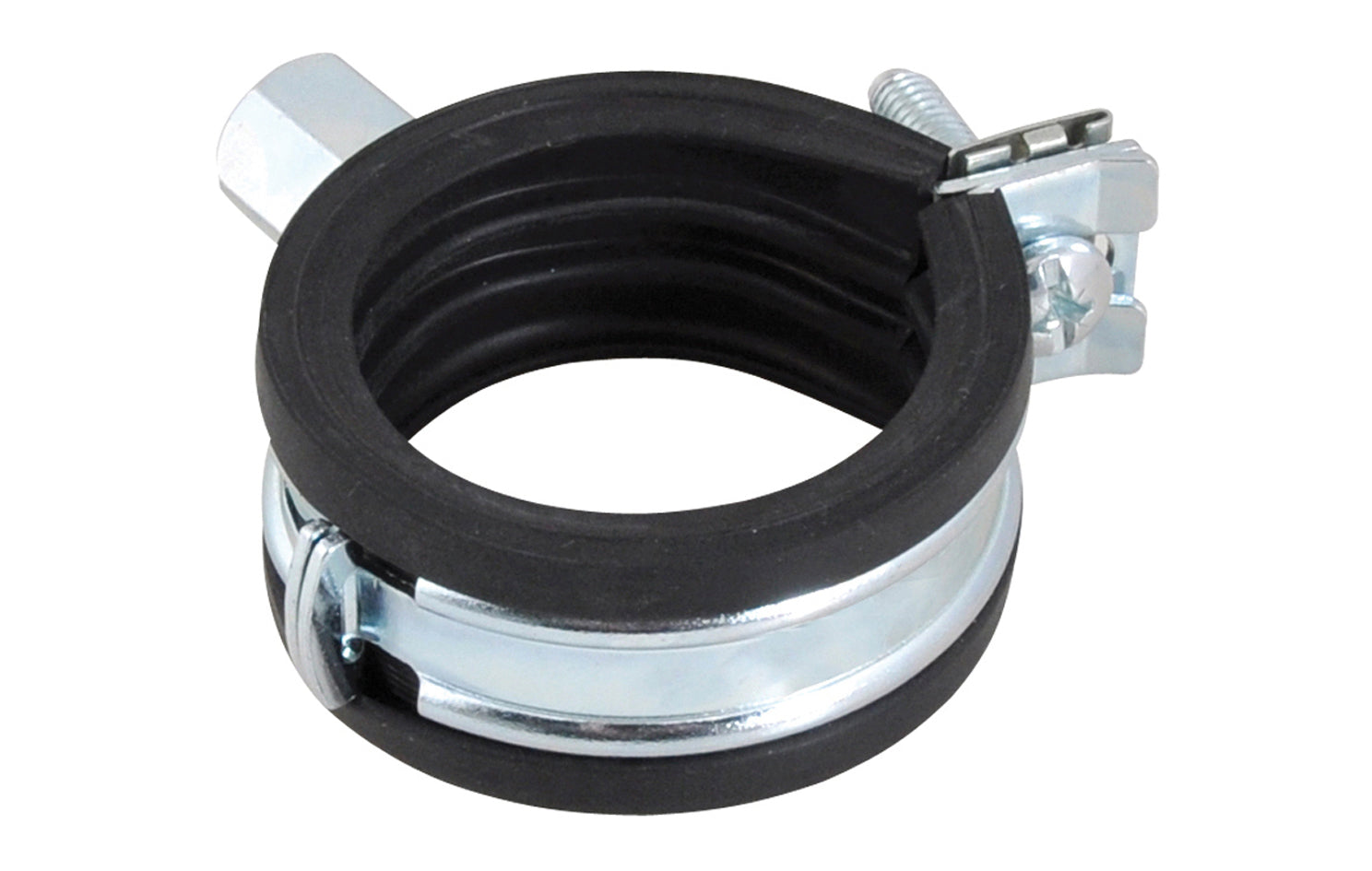

Walraven CR3379018 BISMAT® Flash Clamp CTS 1/2 inches x IPS 3/8 inches, 15-18mm

Product Description

The WALRAVEN CR3379018 BISMAT® Flash Clamp is a single screw clamp featuring a BISMAT® Flash quick locking system that allows for easy, one-handed closure. The locking screw can be secured without tools. Constructed from zinc plated steel with a noise insulating, age resistant EPDM rubber lining. It is sound insulating according DIN 4109 and tested for fire safety, plenum rated to ASTM E-84.

• Single screw clamp
• Features BISMAT® Flash quick locking system
• Constructed from zinc plated steel

Product Highlights

The Walraven BISMAT® Flash Clamp is designed for quick and easy installation, providing secure and noise-insulating support for pipes and tubes. Suitable for various applications requiring fire safety and plenum rated components.

Product Information

Standard Information

• Brand: WALRAVEN
• Manufacturer Part Number: CR3379018

Technical Specifications

• Part No.: CR3379018
• D (mm): 15 - 18
• IP ("): 3/8
• CT ("): 1/2
• B ("): 1.9
• H ("): 1.4
• h ("): 0.87
• b x s (mm): 20 x 1.25
• cs: M6
• F a,z (lbf): 180
• Pack 1: 50
• Brand: Walraven
• MFR Part No: CR3379018
• TSCO Part Number: 581455
• Material: zinc plated steel 1.0037, age resistant lining: EPDM rubber
• Size: CTS 1/2" x IPS 3/8", 15-18MM
