Walraven 2061035 W6000 Insulated Clamp 3/8 inches thermal insulation block

Product Description

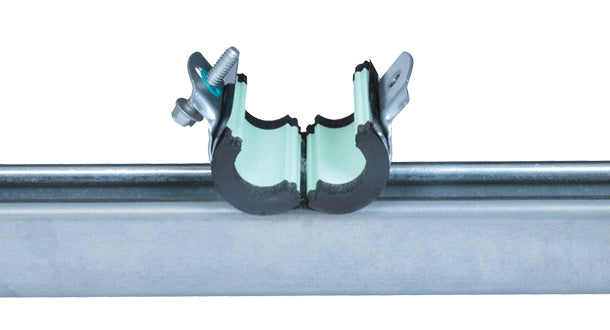

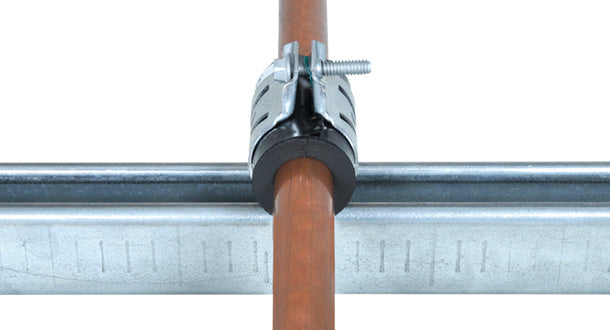

The WALRAVEN 2061035 W6000 Insulated Clamp is designed for pipes requiring insulation, facilitating the installation of thermally isolated steel, copper, stainless steel, or plastic pipes. It is intended for use with soft insulation material, ensuring vapor-proof adhesion to pipe insulation and providing excellent thermal and mechanical properties. W Series Clamps are boxed for easy handling.

• For installation of thermal isolated steel, copper, stainless steel or plastic pipe
• One-piece design - no loose parts
• Easier, faster, safer - installs with one hand

Product Highlights

Insulated clamp for thermal isolated pipes, featuring a one-piece design and easy installation. Ideal for steel, copper, stainless steel, and plastic pipes.

Product Information

Standard Information

• Brand: WALRAVEN
• Manufacturer Part Number: 2061035

Technical Specifications

• material: Clamp: made of steel 1.0242; Insulation shell: PIR thermally hardening foam (core), synthetic rubber (sides) and vapor-proof layer of black PVC
• surface treatment: High grade Zn-Mg based coating (600 hours salt spray)
• D (mm): 32 - 35
• D / CTS ("): 1-1/4
• D / ACR ("): 1-3/8
• F a,z (lbf): 159
• Total Height H (mm): 89
• Total Width W (mm): 45
• Total Depth DtT (mm): 70
