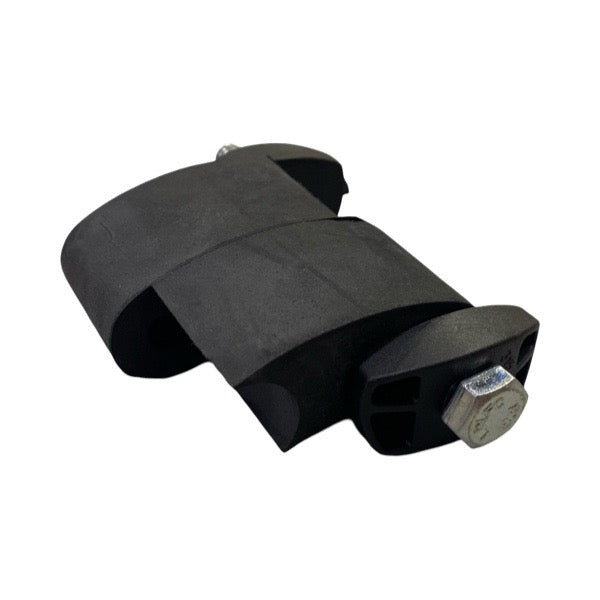

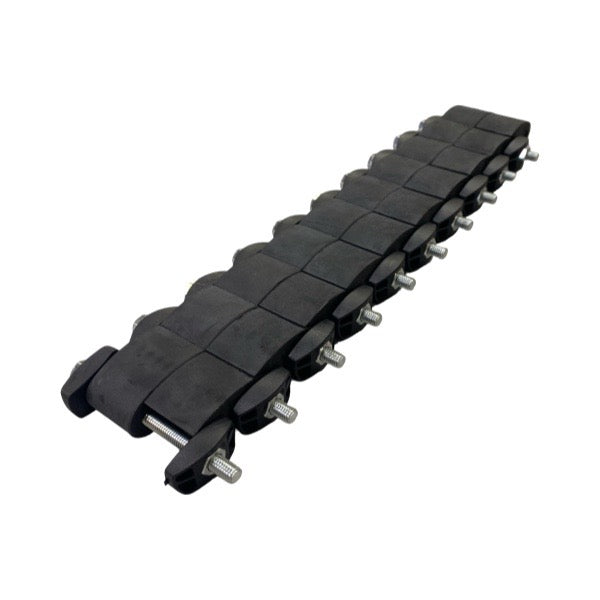

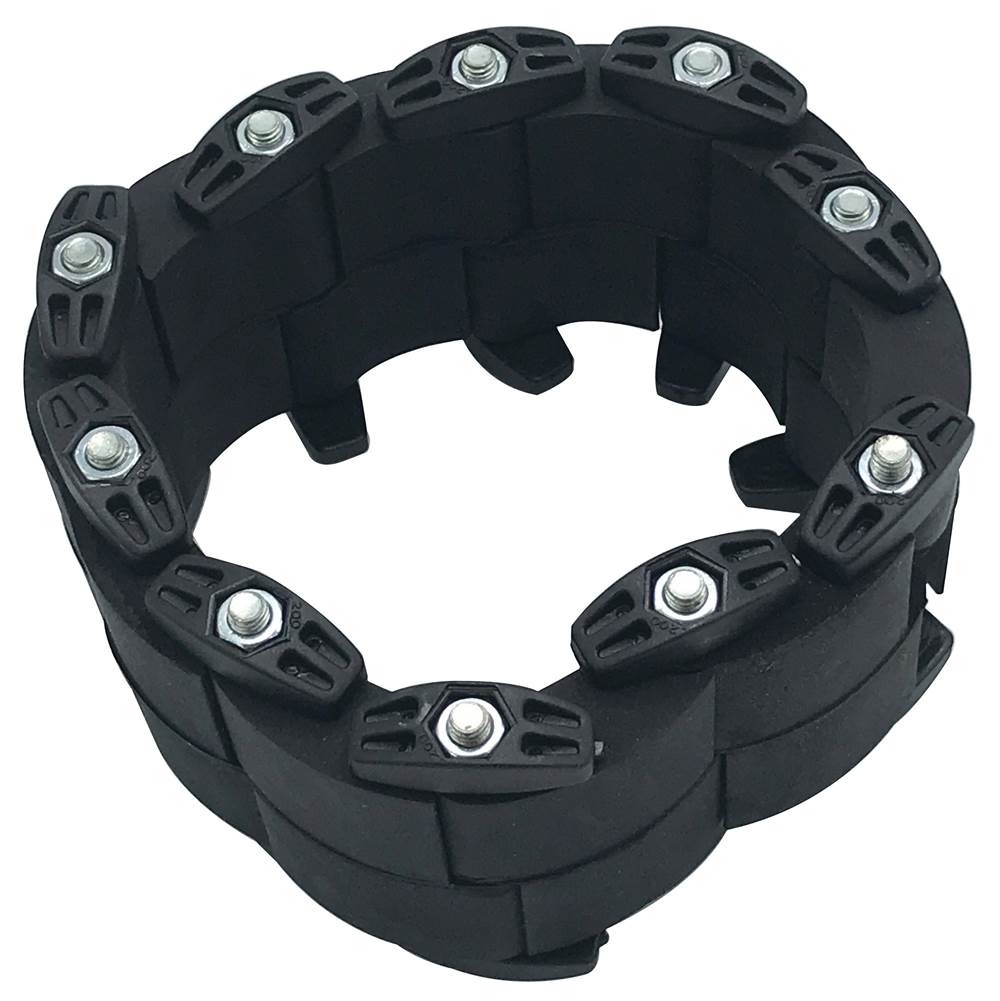

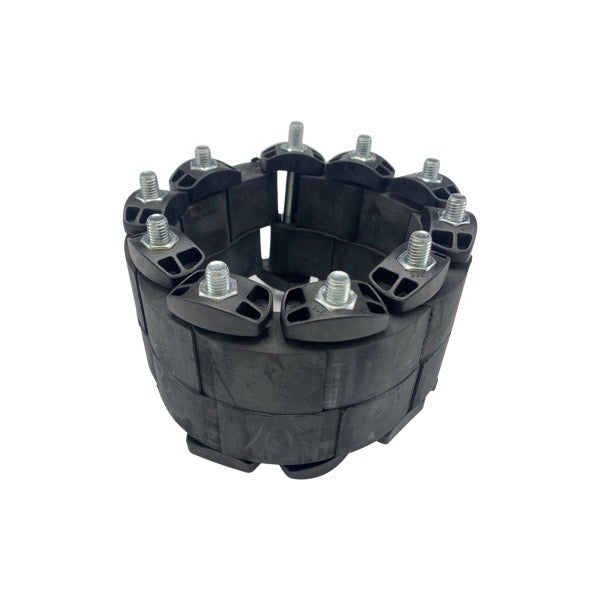

Wal-Rich A000866 Il-315-c Innerlynx Mechanical Seal (Link Only)

Product Description

The WAL-RICH A000866 Il-315-C Innerlynx Mechanical Seal (Link Only) forms a mechanical seal between pipes going through walls, floors, vaults, tanks, and pipeline casings. It helps absorb vibrations, shocks, and sound waves. Being non-conductive, it electrically isolates the inner carrier pipe from the penetrated structure. It can be installed easily and quickly by one worker with no special tools required.

• Mechanical Seal
• Made in the USA
• Absorbs vibrations, shocks, and sound waves

Product Highlights

The WAL-RICH A000866 Innerlynx Mechanical Seal forms a hydrostatic seal up to 40 PSIG and up to 92.28 ft. of head pressure.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: A000866
• Country of Origin: USA

Technical Specifications

• Quantity Per Package: 10
• Pressure: 40 PSI
• Feet of Head Pressure: 92.28
• Made in the USA: Yes
• Temperature Range: 40-250 Degrees F
• Gaskets: EPDM Gaskets
• Bolts & Nuts: Carbon Steel Bolts & Nuts
