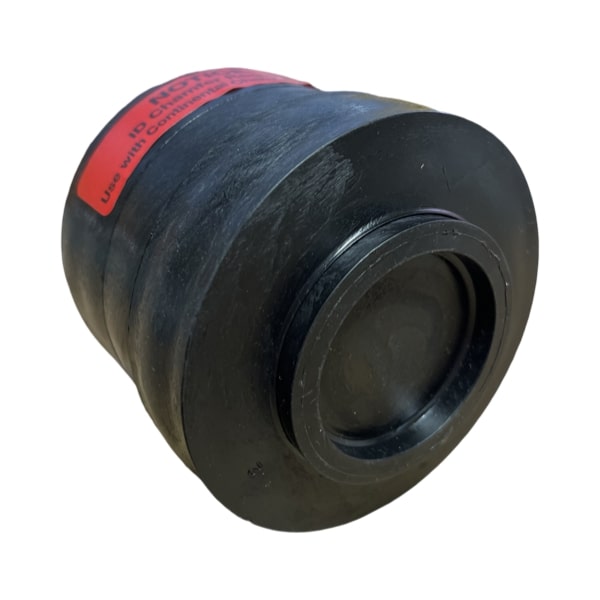

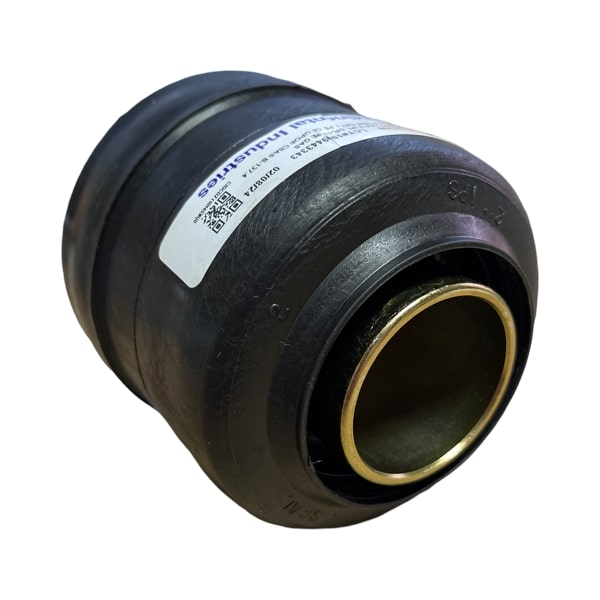

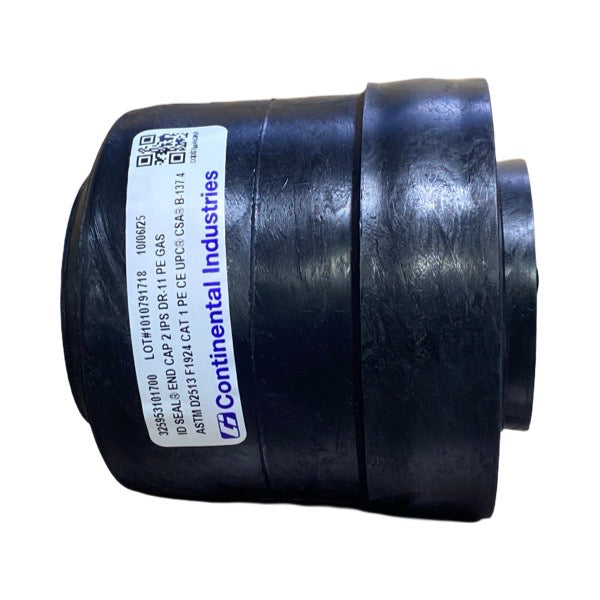

Wal-Rich 2892010 Con-Stab Cap Ends 2 inch SDR-11

Product Description

The WAL-RICH 2892010 is a 2 inch IPS Con-Stab Cap End with SDR-11 wall thickness, designed for outdoor, underground use with PE pipe. This end cap is IAPMO, CSA, and ICC approved, suitable for gas, plumbing, and propane markets. It operates within a temperature range of -20°F to 140°F and handles a maximum pressure of 125 PSI. Installation requires a licensed gas fitter and a Continental chamfer tool.

• Features Continental’s patented "ID Seal" for secure connections.
• Designed for underground PE pipe (ASTM D 2513) applications.
• Made in the USA and IAPMO, CSA, & ICC approved.

Product Highlights

This 2 inch IPS Con-Stab Cap End is for underground PE pipe, featuring an ID Seal and rated for 125 PSI.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2892010
• Country of Origin: USA

Technical Specifications

• Product Type: End Cap
• Size: 2 Inch
• Wall Thickness: SDR-11
• Connection Type: IPS
• Minimum Temperature: -20°F
• Maximum Temperature: 140°F
• Maximum Pressure: 125 PSI
• Quantity Per Package: 1
• Certifications: IAPMO, CSA, ICC, UPC, MA Code Approved
• Chamfer Tool Required: Yes
