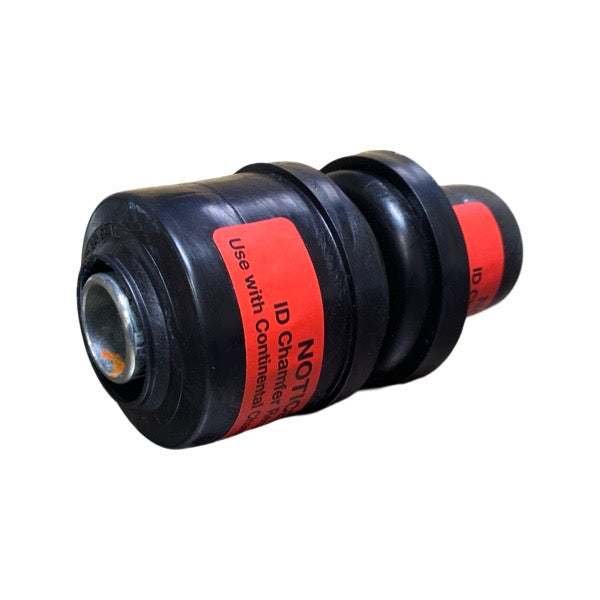

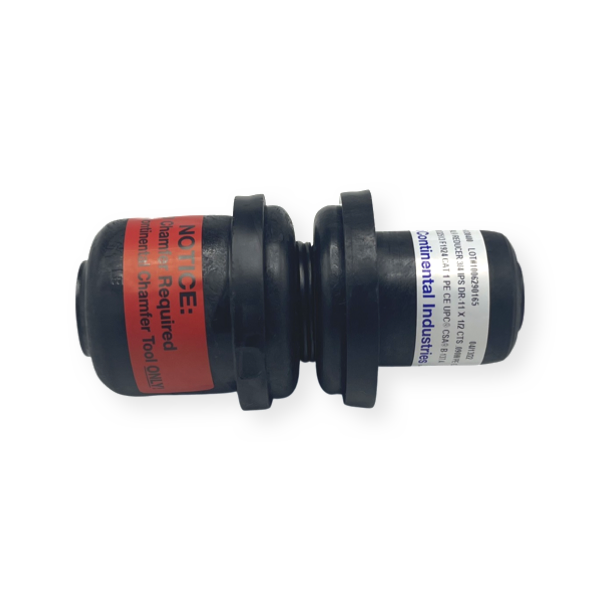

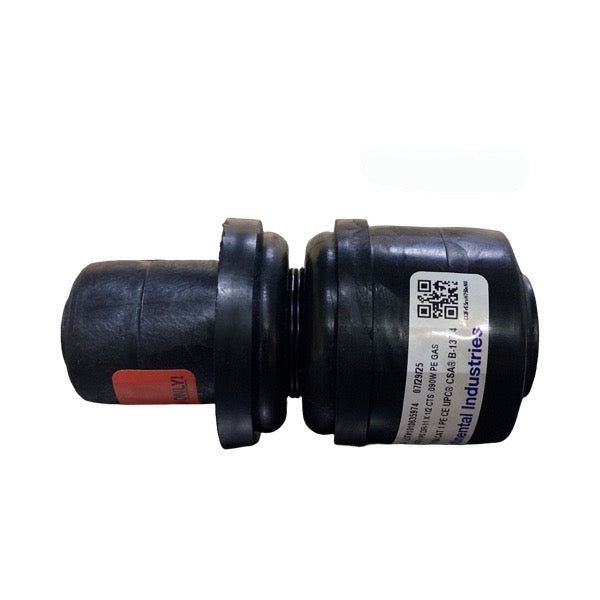

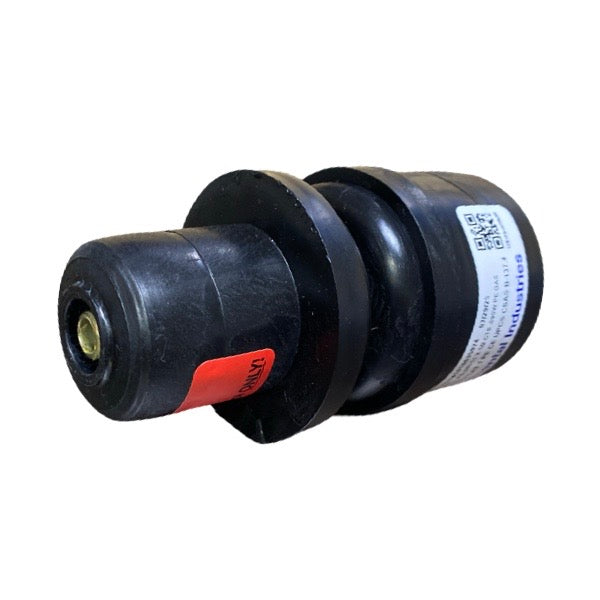

Wal-Rich 2890042 1/2 inches CTS x 1 inches IPS Con-Stab Reducing Coupling SDR-11

Product Description

The WAL-RICH 2890042 is a 1/2" CTS X 1" IPS Con-Stab Reducing Coupling SDR-11. This coupling is designed for reducing connections, featuring a 1/2" CTS (.625) to 1" IPS size. It has a .090 wall thickness and an SDR-11 rating, suitable for 125 PSI applications. Installation requires a chamfer tool. It is UPC/CSA Approved and MA Code Approved, ensuring compliance with industry standards.

• UPC/CSA Approved
• MA Code Approved
• Chamfer Tool Required

Product Highlights

This reducing coupling is rated for 125 PSI and requires a chamfer tool for installation.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2890042

Technical Specifications

• Weight: 0.702 lbs
• Quantity Per Package: 1
• Wall Thickness/SDR: .090 WALL X SDR-11
• Pressure Rating: 125 PSI
• Certifications: UPC/CSA Approved
• Code Approval: MA Code Approved
• Installation Requirement: Chamfer Tool Required
• Product Type: Coupling
• Size: 1/2' CTS (.625) X 1' IPS
